Product Summary
The REF02 is a +10V precision voltage reference. It features excellent temperature stability (as low as 8.5 ppm/°C worst case), low current drain, and low noise. The REF02 also provides a TEMP pin whose output voltage varies linearly with temperature, making this device suitable for a wide variety of temperature-sensing and control applications. Also it is available from Maxim in the space-saving SO package, as well as in the standard 8-pin TO-99 and MINI-DIP packages. The REF02 can be used in (1)A to D Converters; (2)D to A Converters; (3)Digital Voltmeters; (4)Voltage Regulators; (5)Threshold Detectors.
Parametrics
REF02 absolute maximum ratings: (1)Input Voltage: 40 V; (2)Power Dissipation T099 (J) (derate at 7.1mW°C above 80°C): 500mW; (3)Output Short-Circuit Duration: Indefinite; (4)Storage Temperature Range: -65°C to +150°C; (5)Operating Temperature Range: -40°C to +85°C; (6)DICE Junction Temperature (Tj): -65°C to +150°C; (7)Lead Temperature (soldering, 10s): +300°C.
Features
REF02 features: (1)Pretrimmed to +10V +/-0.3%; (2)Excellent Temperature Stability: 3ppm/¡ãC; (3)Low Noise: 10uVp-p (REF02); (4)Low Supply Current: 1.4mA max; (5)Short-Circuit Proof; (6)Linear Temperature Transducer O/P (REF02).

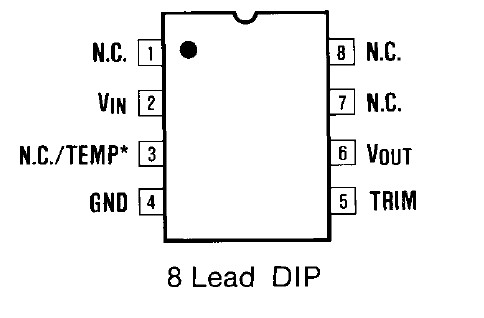

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() REF02 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() REF02AJ/883B |
![]() Maxim Integrated Products |
![]() Voltage & Current References |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() REF02AJ-G107 |
![]() Maxim Integrated Products |
![]() Voltage & Current References |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() REF02AP |
![]() Texas Instruments |
![]() Voltage & Current References +5V Precision Voltage Reference |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() REF02AU |
![]() Texas Instruments |
![]() Voltage & Current References +5V Precision Voltage Reference |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() REF02AU/2K5 |
![]() Texas Instruments |
![]() Voltage & Current References +5V Precision Voltage Reference |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() REF02AU/2K5E4 |
![]() Texas Instruments |
![]() Voltage & Current References +5V Precision Voltage Reference |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() REF02AUE4 |
![]() Texas Instruments |
![]() Voltage & Current References +5V Precision Voltage Reference |
![]() Data Sheet |
![]()
|
|
