Product Summary

The RT9161-33CX is a 300/500mA fixed output voltage low dropout linear regulator. Typical ground current is approximately 110μA, from zero to maximum loading conditions. Wide range of available output voltage fits most of applications. Built-in output current-limiting most thermal-limiting provide maximal protection against any fault conditions. For ease of application, the RT9161-33CX comes in the popular 3-pin SOT-23 (300mA), SOT-89 (300mA), SOT-223 (500mA), or TO-92 packages.

Parametrics

RT9161-33CX absolute maximum ratings: (1)put Voltage: -0.3 to 14V; (2)Operating Junction Temperature Range: -40 to 125℃; (3)Storage Temperature Range: -65 to 150℃; (4)Power Dissipation, PD: 0.4W; (5)Package Thermal Resistance, θJA: 250℃/W.

Features

RT9161-33CX features: (1)Low Dropout Voltage of 200mV at Output Current; (2)100mA, 450mV at Output Current 300mA, and 750mV at 500mA Output Current; (3)Guaranteed 300/500mA Output Current; (4)Internal 1.5Ω P-MOSFET Draws No Base Current; (5)Low Ground Current 110 μA; (6)2% Accuracy Output Voltage; (7)Input Voltage Range up to 12V; (8)Extremely Tight Load Regulation; (9)Fast Transient Response; (10)Current-limiting and Thermal-limiting; (11)RoHS Compliant and 100% Lead (Pb)-Free.

Diagrams

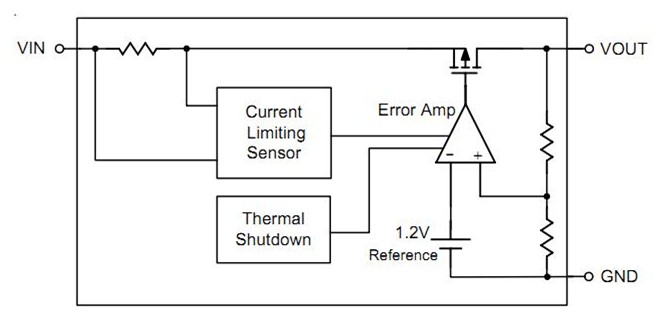

RT9161-33CX block diagram
