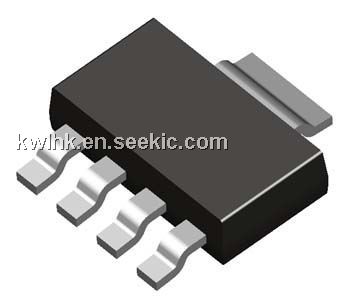

Product Summary

The RT9164A-15CG is a high performance positive voltage regulator. The RT9164A-15CG is designed for applications requiring low dropout performance at fully rated current. Additionally, the RT9164A-15CG provides excellent regulation over variations in line and load. Outstanding features include low dropout performance at rated current, fast transient response, internal current-limiting, and thermal-shutdown protection of the output device. The RT9164A-15CG offers fixed and adjustable voltage options available in space-saving SOT-223, TO-252, and TO-263 packages.

Parametrics

RT9164A-15CG absolute maximum ratings: (1)Supply Input Voltage: 15V; (2)Power Dissipation, PD @ TA = 25℃ SOT-223: 0.740W, TO-252: 1.471W, TO-263: 2.222W; (3)Lead Temperature (Soldering, 10 sec.): 260℃; (4)Junction Temperature: 150℃; (5)Storage Temperature Range: -65℃ to 150℃; (6)ESD Susceptibility HBM (Human Body Mode): 8 kV, MM (Machine Mode): 750V.

Features

RT9164A-15CG features: (1)Low Dropout Performance, 1.4V Max.; (2)Full Current Rating Over Line and Temperature; (3)Fast Transient Response; (4)± 2% Output Voltage Accuracy; (5)1.5V, 1.8V, 2.5V, 2.85V, 3.0V, 3.3V, and 3.5V Fixed Adjustable Output Voltage; (6)SOT-223, TO-252, and TO-263 Packages; (7)RoHS Compliant and 100% Lead (Pb)-Free.

Diagrams

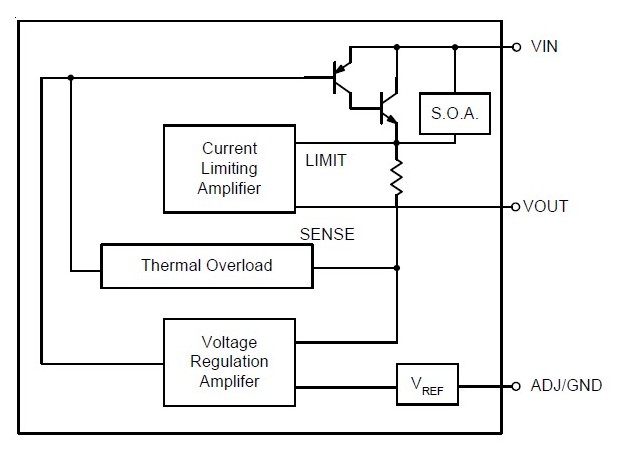

RT9164A-15CG block diagram
