Product Summary

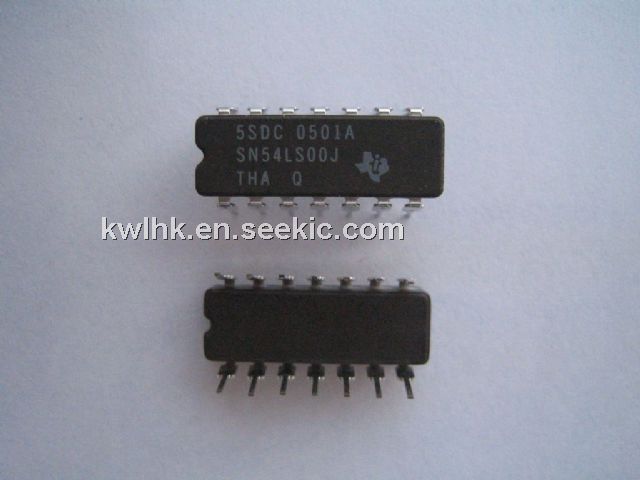

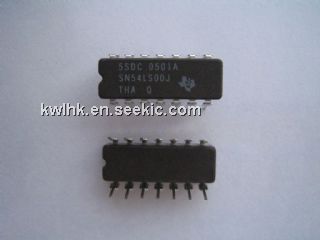

The SN54LS00J is a quadruple 2-input positive-nand gate.

Parametrics

SN54LS00J absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage: ’00, ’S00: 5.5 V; (3)Input voltage ’LS00: 7 V; (4)Storage temperature range, Tstg: -65°C to 150°C.

Features

SN54LS00J features: (1)package option include plastic small-outline, shrink small-outlline, and ceramic flat packages, ceramic chip carriers and standard plastic and ceramic DIPs; (2)also available as dual 2-input positive-NAND gate in small-outline package.

Diagrams

SN54LS00J pin connection
