Product Summary
The SN74LVC1G79DCKR is a single positive-edge-triggered d-type flip-flop.
Parametrics
SN74LVC1G79DCKR absolute maximum ratings: (1)Supply voltage range: –0.5 to 6.5 V; (2)Input voltage range(2): –0.5 to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state(2): –0.5 to 6.5 V; (4)Voltage range applied to any output in the high or low state(2)(3): –0.5 to VCC + 0.5 V; (5)Input clamp current: –50 mA; (6)Output clamp current: –50 mA; (7)IO Continuous output current: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)Storage temperature range: –65 to 150 °C.
Features
SN74LVC1G79DCKR features: (1)Available in the Texas Instruments NanoFree Package; (2)Supports 5-V VCC Operation ·; (3)Inputs Accept Voltages to 5.5 V; (4)Max tpd of 4 ns at 3.3 V; (5)Low Power Consumption, 10-mA Max I; (6)±24-mA Output Drive at 3.3 V; (7)Ioff Supports Partial-Power-Down Mode Operation; (8)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.

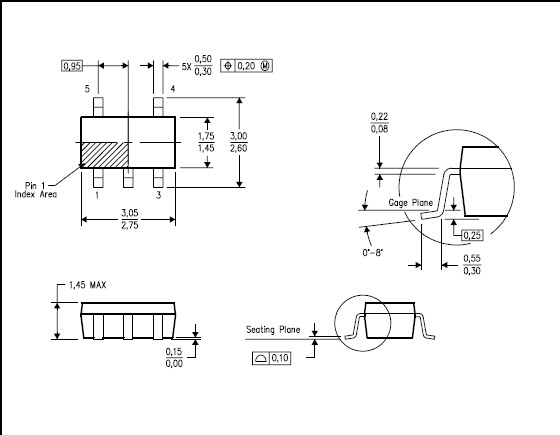

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LVC1G79DCKR |
Texas Instruments |
Flip Flops Positive Edge Trig |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G79DCKRE4 |
Texas Instruments |
Flip Flops Positive Edge Trig |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G79DCKRG4 |
Texas Instruments |
Flip Flops Positive Edge Trig |
Data Sheet |
|
|
||||||||||||
