Product Summary

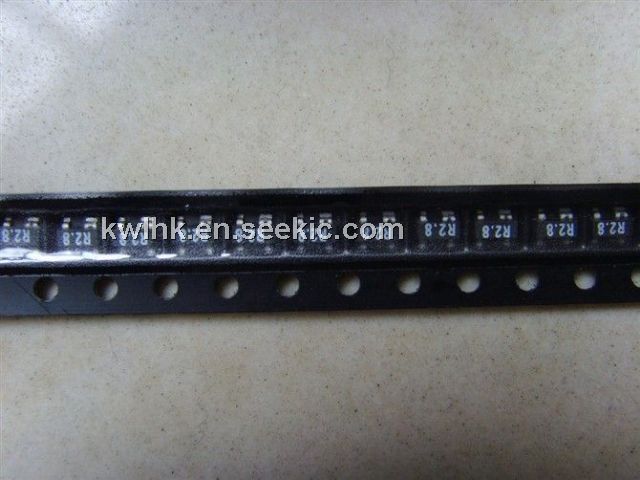

The SR2.8.TC is a RailClamps surge rated diode array. The designed to protect high speed data interfaces. The SR series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and tertiary lightning. It is ideal for: (1)Firewire; (2)Sensitive Analog Inputs; (3)Video Line Protection; (4)Portable Electronics; (5)Microcontroller Input Protection; (6)WAN/LAN Equipment.
Parametrics
SR2.8.TC absolute maximum ratings: (1)Peak Pulse Power (tp = 8/20μs)pPk: 200 Watt; (2)Peak Pulse Current (tp = 8/20μs)IPP: 14 A; (3)Peak Forward Voltage (I F = V 1A, tp=8/20μs)FP: 1.5 V; (4)L T ead Soldering Temperature LL: 260 (10 sec.)°C; (5)Operating Temperature TJ: 55 to +125°C; (6)Storage Temperature STTG: -55 to 150 °C.
Features
SR2.8.TC features: (1)ESD protection to: IEC 61000-4-2 (ESD)±15kV (air), ±8kV (contact); IEC 61000-4-4 (EFT)40A (5/50ns); IEC 61000-4-5 (Lightning)12A (8/20μs).; (2)Array of surge rated diodes with internal EPD TVS diode; (3)Protects two I/O lines; (4)Low capacitance (<10pF)for high-speed interfaces; (5)Low leakage current (< 1μA); (6)Low operating voltage: 2.8V; (7)Solid-state technology.
Diagrams
