Product Summary
The ST72T631K4M1 is a low speed usb 8-bit MCU.
Parametrics
ST72T631K4M1 absolute maximum ratings: (1)ROM - OTP (bytes): 16 K; (2)RAM (stack) - bytes: 512; (3)Peripherals:Watchdog, 16-bit timer, SCI, I2C, ADC, USB; (4)Operating Supply:4.0V to 5.5V; (5)CPU frequency: 8 Mhz (with 24 MHz oscillator) or 4 MHz (with 12 MHz oscillator); (6)Operating temperature:0°C to +70°C; (7)Packages: SO34/SDIP32.
Features
ST72T631K4M1 features: (1)Up to 16Kbytes program memory; (2)Data RAM: up to 512 bytes with 64 bytes stack; (3)Run, Wait and Halt CPU modes; (4)12 or 24 MHz oscillator; (5)RAM retention mode; (6)USB (Universal Serial Bus) Interface with DMA for low speed applications compliant with USB 1.5 Mbs specification (version 1.1) and USB HID specifications (version 1.0); (7)Integrated 3.3V voltage regulator and transceivers; (8)Suspend and Resume operations; (9)3 endpoints with programmable in/out configuration; (10)8-bit A/D Converter (ADC) with 8 channels; (11)Fully static operation; (12)63 basic instructions; (13)17 main addressing modes; (14)8x8 unsigned multiply instruction; (15)True bit manipulation.

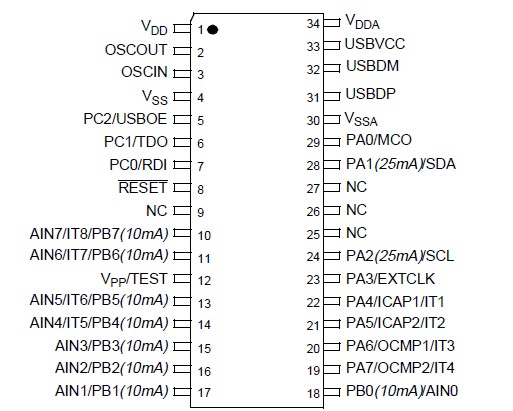

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

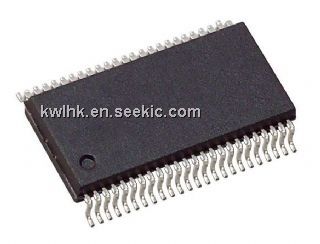

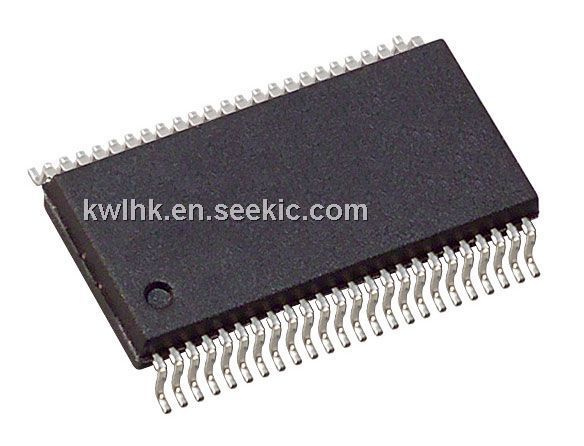

![]() ST72T631K4M1 |
![]() STMicroelectronics |
![]() 8-bit Microcontrollers (MCU) OTP EPROM 16K USB/SC |
![]() Data Sheet |
![]()
|
|
||||||||||||
