Product Summary
The TA2120FN is a low consumption current stereo headphone power amplifier. This device is developed for portable CD players (3V). This IC has active bass boost, output limiter, input pin for beep sound.
Parametrics
TA2120FN absolute maximum ratings: (1)Supply Voltage: 4.5 V; (2)Power Dissipation: 550 mW; (3)Output Current Io (peak): 100 mA; (4)Operating temperature Topr: -25 to 75 °C; (5)Storage Temperature Range: -55 to +150 °C.
Features
TA2120FN features: (1)Two kinds of gain mode available: GV = 16dB or 8.5dB; (2)Output power (VCC = 2.0 V, f = 1 kHz, THD = 10%, RL = 16; Po = 8 mW (typ.); (3)Low noise: Vno = .98dBV (typ.); (4)Built-in the center amplifier ON/OFF function. (Favorable for low dissipation current in the C-Couple output configuration); (5)Built-in active bass boost system; (6)Built-in output limiter function; (7)Input pin for beep sound; (8)Excellent ripple rejection ratio; (9)Built-in capacitor for reducing buzz noise; (10)Built-in power mute; (11)Built-in a power on/off switch; (12)Operating supply voltage range (Ta = 25°C): VCC = 1.8 to 4.5 V.

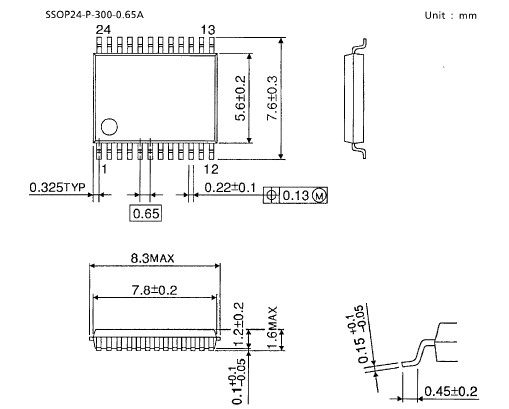

Diagrams
