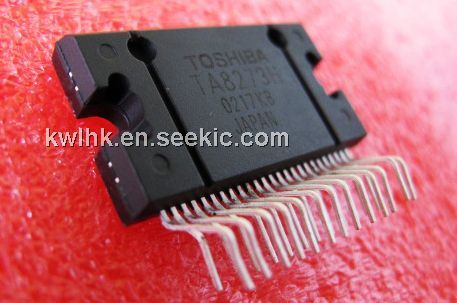

TA8273H

TA8273H, 47 W, BTL × 4 ch Audio Power IC, 50V, 9A, zip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	5.00 / Piece
101 ~ 500 :	4.00 / Piece
501 ~ 1000 :	3.00 / Piece

PartNumber:: TA8273H

Brand:: Toshiba Semiconductor - Toshiba | Pack: ZIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-26

From Other Seller

Part Number:TA8273H
US $3.00 - 5.00
Quantity:

piece

Product Summary

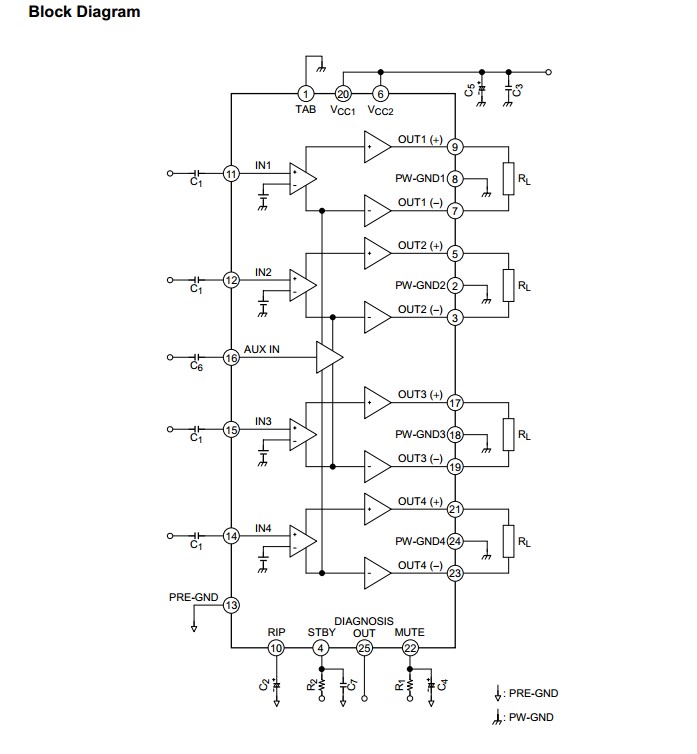

The TA8273H is a 4 ch BTL audio power amplifier for car audio application. This IC can generate more high power: POUTMAX = 47 W as it is included the pure complementary PNP and NPN transistor output stage. The TA8273H is designed low distortion ratio for 4 ch BTL audio power amplifier, built-in stand-by function, muting function, and diagnosis circuit which can detect output to VCC/GND short, output offset voltage and over voltage input mode.

Parametrics

TA8273H absolute maximum ratings: (1)Peak supply voltage (0.2 s)VCC (surge): 50 V; (2)DC supply voltage VCC (DC): 25 V; (3)Operating supply voltage VCC (opr): 16 V; (4)Output current (peak)IO (peak): 9 A; (5)Power dissipation PD: 125 W; (6)Operating temperature Topr: -40 to 85 °C; (7)Storage temperature Tstg: -55 to 150 °C.

Features

TA8273H features: (1)Built-in diagnosis circuit (pin 25); (2)Low distortion ratio: THD = 0.02% (typ.)(VCC = 13.2 V, f = 1 kHz, POUT = 5 W, RL = 4Ω); (3)Low noise: VNO = 0.10 mVrms (typ.)(VCC = 13.2 V, Rg = 0 Ω, GV = 27dB, BW = 20Hz to 20 kHz); (4)Built-in stand-by switch function (pin 4); (5)Built-in muting function (pin 22); (6)Built-in AUX amplifier from single input to 4 channels output (pin 16); (7)Built-in various protection circuit: Thermal shut down, over voltage, out to GND, out to VCC, out to out short; (8)Operating supply voltage: VCC (opr)= 9~16 V.
