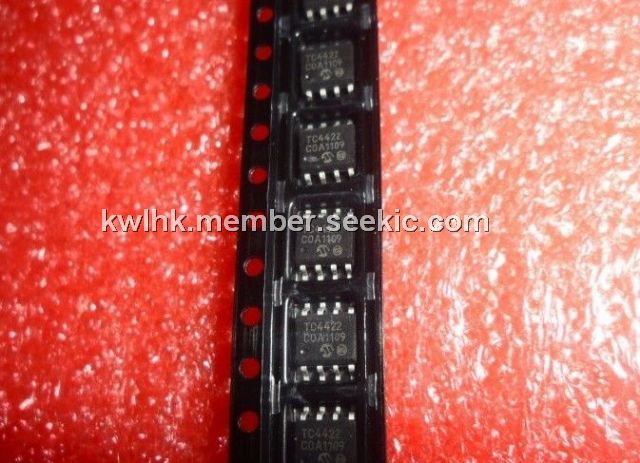

Product Summary
The TC4422 are high-current buffer/drivers capable of driving large MOSFETs and IGBTs.These devices are essentially immune to any form ofupset, except direct overvoltage or over-dissipation.They cannot be latched under any conditions withintheir power and voltage ratings. These parts are notsubject to damage or improper operation when up to5V of ground bounce is present on their ground termi-nals. They can accept, without damage or logic upset,more than 1A inductive current of either polarity beingforced back into their outputs. In addition, all terminalsare fully protected against up to 4 kV of electrostaticdischarge
Parametrics
The absolute maximum ratings of TC4422COA are
(1)Supply Voltage :+20V;
(2)Input Voltage: (VDD + 0.3V) to (GND – 5V);
(3)Input Current (VIN > VDD):50 mA;
(4)Package Power Dissipation (TA ≤ 70°C):SOIC: 750 mW
Features
The features of TC4422COA can be summarized as (1)High Peak Output Current: 9A; (2)Wide Input Supply Voltage Operating Range:- 4.5V to 18V; (3)High Continuous Output Current: 2A Max; (4)Fast Rise and Fall Times:- 30 ns with 4,700 pF Load- 180 ns with 47,000 pF Load; (5)Short Propagation Delays: 30 ns (typ); (6)Low Supply Current:- With Logic ‘1’ Input – 200 μA (typ)- With Logic ‘0’ Input – 55 μA (typ); (7)Low Output Impedance: 1.4(typ); (8)Latch-Up Protected: Will Withstand 1.5A OutputReverse Current; (9)Input Will Withstand Negative Inputs Up To 5V; (10)Pin-Compatible with the TC4420/TC44296A MOSFET Driver; (11)Space-saving 8-Pin 6x5 DFN Package
Diagrams
<DIV><IMG alt="TC4422COA Pin Configuration" src="http://www.seekic.com/uploadfile/ic-mfg/2012716195423182.jpg" border=0></DIV>
![]() |
