TCMT1105

TCMT1105, optocoupler, 6 V, 60 mA, 1.5 A, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.00 / Piece
500 ~ 1000 :	2.00 / Piece
1000 ~ 1500 :	1.00 / Piece

PartNumber:: TCMT1105

Brand:: Vishay Siliconix - Vishay | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-15

From Other Seller

Part Number:TCMT1105
US $1.00 - 3.00
Quantity:

piece

Product Summary

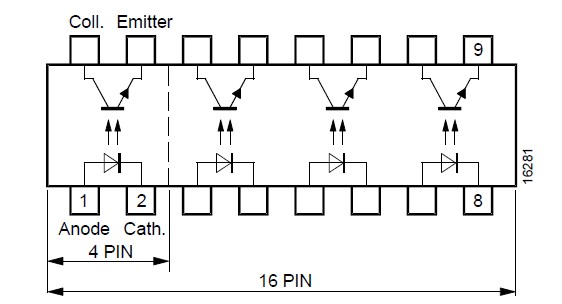

The TCMT1105 is a optocoupler .The TCMT1105 consist of a phototransistor optically coupled to a gallium arsenide infraredemitting diode in an 4- lead up to 16- lead plastic Miniflat package. The elements are mounted on one leadframe using a coplanar technique, providing a fixed distance between input and output for highest safety requirements.Applications: programmable logic controllers, modems, answering machines, general applications.

Parametrics

TCMT1105 absolute maximum ratings: (1)Reverse voltage: 6 V; (2)Forward current: 60 mA; (3)Forward surge current: 1.5 A; (4)Power dissipation: 100 mW; (5)Junction temperature: 125 ℃.

Features

TCMT1105 features: (1)Low profile package (half pitch); (2)AC Isolation test voltage Vio = 3.75 kVRMS; (3)Low coupling capacitance of typical 0.3 pF; (4)Current Transfer Ratio (CTR)selected into groups; (5)Low temperature coefficient of CTR; (6)Wide ambient temperature range; (7)Underwriters Laboratory (UL)1577 recognized, file number E-76222; (8)CSA (C-UL)1577 recognized file number E- 76222 - Double Protection; (9)Coupling System M.
