Product Summary
The TDA1308AT is an integrated class AB stereo headphone driver contained in an SO8, DIP8 or a TSSOP8 plastic package. The TDA1308AT is fabricated in a 1 mmCMOS process and has been primarily developed for portable digital audio applications.
Parametrics
TDA1308AT absolute maximum ratings: (1)VDD, supply voltage: 0 to 8.0 V; (2)tSC(O), output short-circuit duration: 20s; (3)Tstg, storage temperature: -65 to +150℃; (4)Tamb, operating ambient temperature: -40 to +85℃; (5)Vesd, electrostatic discharge: -2000 to +2000 V.
Features
TDA1308AT features: (1)Wide temperature range; (2)No switch ON/OFF clicks; (3)Excellent power supply ripple rejection; (4)Low power consumption; (5)Short-circuit resistant; (6)High performance: high signal-to-noise ratio; high slew rate; low distortion; (7)Large output voltage swing.

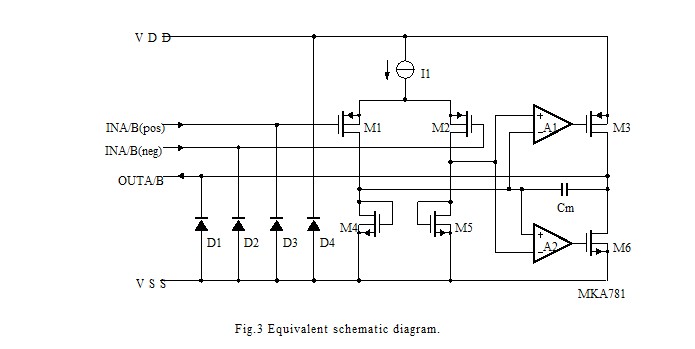

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA1308AT/N2 |
NXP Semiconductors |
Audio Amplifiers HEADPHONE DRIVER; LV |
Data Sheet |
Negotiable |
|
||||
|
TDA1308AT/N2,112 |
NXP Semiconductors |
Audio Amplifiers HEADPHONE DRIVER; LV |
Data Sheet |
Negotiable |
|
||||
|
TDA1308AT/N2,115 |
NXP Semiconductors |
Audio Amplifiers STEREO HDPHON DRVR CLASS AB |
Data Sheet |
Negotiable |
|
||||
