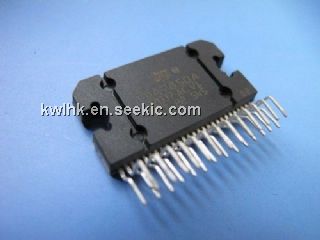

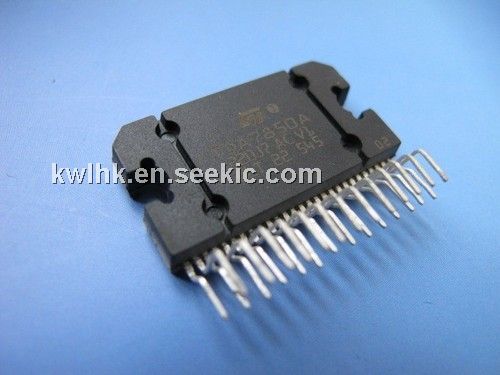

TDA7850A

audio power amplifier, 8 V ~ 18 V, 9A, 80 W, TDA7850A, STMicroelectronics, Flexiwatt25

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	6.00 / Piece
101 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece

PartNumber:: TDA7850A

Brand:: ST-Ericsson - ST-Ericsson | Pack: ZIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-26

From Other Seller

Part Number:TDA7850A
US $4.00 - 6.00
Quantity:

piece

Product Summary

The TDA7850A is a breakthrough MOSFET technology class AB audio power amplifier in Flexiwatt27 package designed for high power car radio. The fully complementary P-Channel/NChannel output structure allows a rail to rail output voltage swing which, combined with high output current and minimized saturation losses sets new power references in the car-radio field, with unparalleled distortion performances. The TDA7850A integrates a DC offset detector.

Parametrics

TDA7850A absolute maximum ratings: (1)VS Operating supply voltage: 18 V; (2)VS (DC) DC supply voltage: 28 V; (3)VS (pk) Peak supply voltage (for t = 50ms): 50 V; (4)IO Output peak current repetitive (duty cycle 10% at f = 10Hz): 9A; non repetitive (t = 100μs): 10A; (5)Ptot Power dissipation Tcase = 70℃: 80 W; (6)Tj Junction temperature: 150 ℃; (7)Tstg Storage temperature: -55 to 150 ℃.

Features

TDA7850A features: (1)High output power capability: 4 × 50W/4Ω max; 4 × 30W/4Ω@ 14.4V, 1KHz, 10%; 4 × 80W/2Ω max; 4 × 55W/2Ω @ 14.4V, 1KHz, 10%; (2)MOSFET output power stage; (3)Excellent 2Ω driving capability; (4)Hi-fi class distortion; (5)Low output noise; (6)St-by function; (7)Mute function; (8)Automute at min. supply voltage detection; (9)Low external component count: Internally fixed gain (26dB); No external compensation; No bootstrap capacitors; (10)On board 0.35A high side driver.
