Product Summary
The THS6032I is a low-power line driver ideal for asymmetrical digital subscriber line (ADSL) applications. The THS6032I contains two high-current, high-speed current-feedback drivers, which can be configured differentially for driving ADSL signals at the central office. The THS6032I features a unique class-G architecture to lower power consumption to 1.35 W. The THS6032I can also be operated in a traditional class-AB mode to reduce the number of power supplies to two.
Parametrics
THS6032I absolute maximum ratings: (1)Supply voltage, VCC(L) and VCC(H): 33 V; (2)Input voltage, VI: ±VCCH; (3)Output current, IO: 800mA; (4)Differential input voltage, VID: ±4 V; (5)Total power dissipation at (or below) 25℃ free-air temperature; (6)(see Note 2): See Dissipation Rating Table; (7)Maximum junction temperature, TJ: 150℃; (8)Operating free-air temperature, TA, C-suffix: 0 to 70℃; (9)I-suffix: –40 to 85℃; (10)Storage temperature, Tstg:–65 to 125℃; (11)Lead temperature 1,6 mm (1/16 in) from case for 10 seconds: 300℃.
Features
THS6032I features: (1)Low Power ADSL Line Driver Ideal for Central Office; (2)Low-Impedance Shutdown Mode; (3)Two Modes of Operation; (4)Low Distortion; (5)400-mA Minimum Output Current Into a 25Ω Load; (6)High Speed; (7)Thermal Shutdown and Short Circuit Protection; (8)Evaluation Module Available.

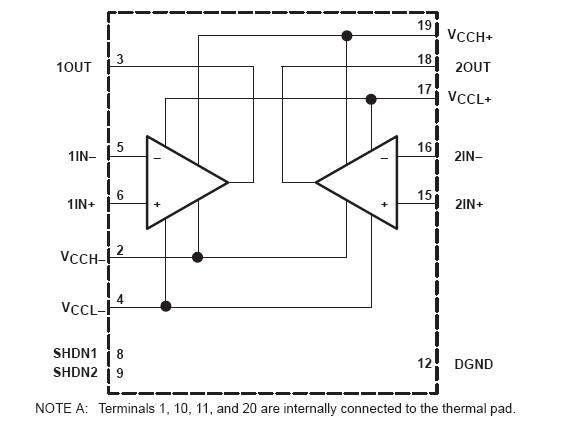

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

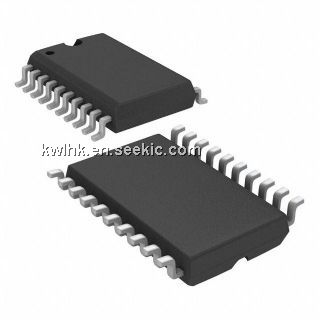

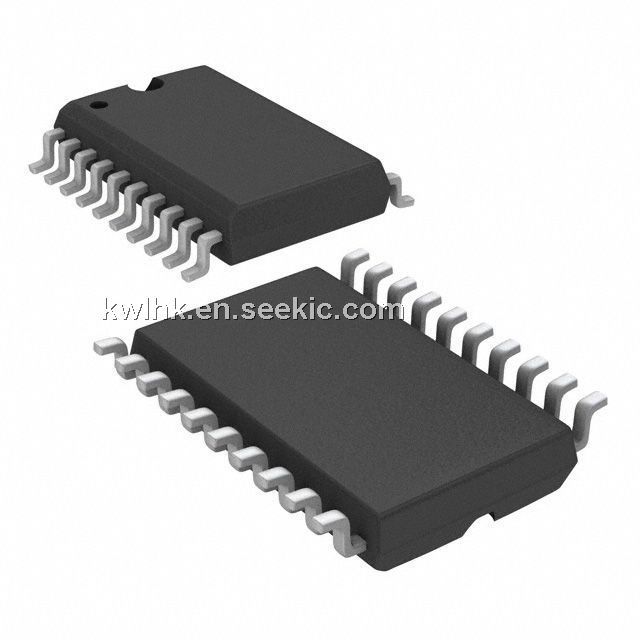

 THS6032IDWP |
Texas Instruments |
Buffers & Line Drivers Low-Pwr ADSL Cent-Office Line Drv |
Data Sheet |
|
|
||||||||||||
|
THS6032IDWPG4 |
Texas Instruments |
Buffers & Line Drivers Low-Pwr ADSL Cent-Office Line Drv |
Data Sheet |
|
|
||||||||||||
|
THS6032IVFP |
Texas Instruments |
High Speed Operational Amplifiers Low-Pwr ADSL Cent-Office Line Drv |
Data Sheet |
Negotiable |
|
||||||||||||
|
THS6032IDWPRG4 |
Texas Instruments |
Buffers & Line Drivers Low-Pwr ADSL Cent-Office Line Drv |
Data Sheet |
|
|
||||||||||||
|
THS6032IDWPR |
Texas Instruments |
Buffers & Line Drivers Low-Pwr ADSL Cent-Office Line Drv |
Data Sheet |
|
|
||||||||||||
|
THS6032IGQER |
Texas Instruments |
Buffers & Line Drivers Low-Pwr ADSL Cent-Office Line Drv |
Data Sheet |
Negotiable |
|
||||||||||||
|
THS6032IVFPRG4 |
Texas Instruments |
High Speed Operational Amplifiers Low-Pwr ADSL Cent-Office Line Drv |
Data Sheet |
Negotiable |
|
||||||||||||
|
THS6032IVFPR |
Texas Instruments |
High Speed Operational Amplifiers Low-Pwr ADSL Cent-Office Line Drv |
Data Sheet |
Negotiable |
|
||||||||||||
