TLC5925I

constant-current led sink driver, 24-TSSOP, 3.3V/5V, 30MHz, 5 mA to 120 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	5.00 / Piece
101 ~ 500 :	4.00 / Piece
501 ~ 1000 :	3.00 / Piece

PartNumber:: TLC5925I

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-27

From Other Seller

Part Number:TLC5925I
US $3.00 - 5.00
Quantity:

piece

Product Summary

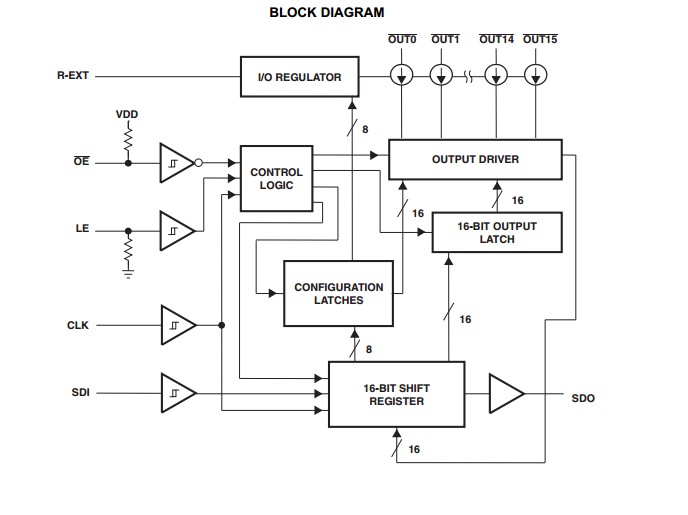

The TLC5925I is a 16-channel constant-current led sink driver. It is designed for LED displays and LED lighting applications with open-load, shorted-load, and overtemperature detection, and constant-current control. The TLC5925I contains a 16-bit shift register and data latches, which convert serial input data into parallel output format. At the output stage, 16 regulated-current ports provide uniform and constant current for driving LEDs within a wide range of VF (Forward Voltage) variations. Applications include: General LED Lighting Applications, LED Display Systems, LED Signage, Automotive LED Lighting, White Goods.

Parametrics

TLC5925I absolute maximum ratings: (1)VDD Supply voltage: 0 7 V; (2)VI Input voltage: –0.4 to VDD + 0.4 V; (3)VO Output voltage: –0.5 to 20 V; (4)IOUT Output current: 120 mA; (5)IGND GND terminal current: 1920 mA; (6)TA Free-air operating temperature range: –40 to 85 ℃; (7)TJ Operating junction temperature range: –40 to 150 ℃; (8)Tstg Storage temperature range: –55 to 150 ℃; (9)ESD Electrostatic-Discharge Capability V(HBMESD) (100 pF, 1.5 kΩ): 2kV.
