Product Summary

The TLV5591B is a semiconductor signal processor. The device incorporates overvoltage protection and temperature protection that disables the circuit at overtemperature. This low-current device operates at synchronous data rates of 1600, 3200, and 6400 bits per second (bps) using a 76.8 kHz oscillator. This device is readily integrated with standard off-the-shelf electronic pager components thereby reducing start-up costs associated with pager manufacturing.

Parametrics

TLV5591B absolute maximum ratings: (1)Input Voltage: -42 to +42 V; (2)Input current: internally limited; (3)Inhibit Voltage: -42 to +42 V; (4)Inhibit current: internally limited; (5)Reset Output Voltage: -0.3 to 42 V; (6)Reset Output current: internally limited; (7)Junction temperature: 150°C; (8)Storage temperature range: -50 to +150 °C.

Features

TLV5591B features: (1)16 Address Words support any Combination of Long (2 Word) and Short (1 Word) Addresses; (2)16 Temporary Address Words Support Group Messaging; (3)1600, 3200, and 6400 Bits per Second Decoding; (4)Any Phase (1, 2, and 4) Decoding; (5)Serial Peripheral Interface Security Circuit Deters Unauthorized Reconfigurations; (6)2.0 Volt to 3.3 Volt Operation; (7)Allows Low Current STOP Mode Operation of Host Processor; (8)Uses standard Serial Peripheral Interface (SPI) in Slave Mode; (9)32-bit Packets for Bidirectional Communications over the Serial Peripheral Interface; (10)Universal Receiver Control Supports many RF Integrated Circuits; (11)Programmable Low Battery Monitoring; (12)FLEX Time-of-Day Stamping Support.

Diagrams

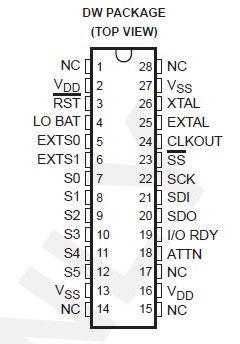

TLV5591B pin connection
