Product Summary

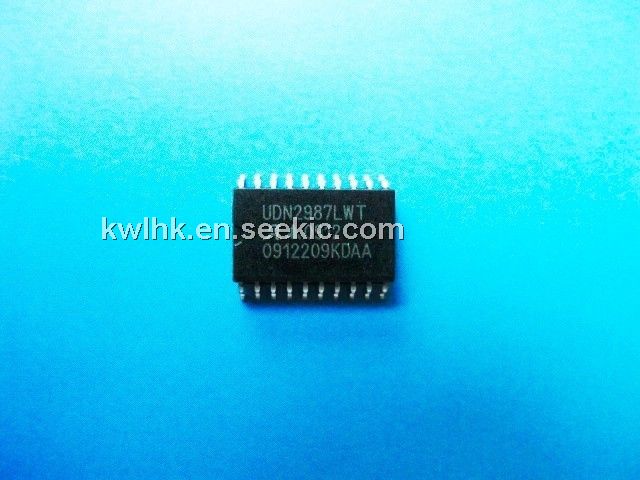

The UDN2987LWT is a DABIC-5 8-channel source driver. And it can be used in (1)Relays; (2)Motors; (3)Solenoids; (4)LEDs; (5)Incandescent lamps. And it is supplied in a 20-lead small-outline (SOIC-W) plastic package.
Parametrics
UDN2987LWT absolute maximum ratings: (1)Supply Voltage: 35 V; (2)Continuous Output Current: -500 mA; (3)FAULT Output Voltage: 35 V; (4)FAULT Output Current: 30 mA; (5)Input Voltage: -0.3 to 14 A; (6)Junction Temperature: 150 °C; (7)Storage Temperature Range: –55 to 150 °C; (8)Operating Temperature Range: –20 to 85 °C.
Features
UDN2987LWT features: (1)4.75 to 35 V driver supply voltage; (2)Output enable-disable (OE/R); (3)350 mA output source current; (4)Overcurrent protected; (5)Internal ground clamp diodes; (6)Output Breakdown Voltage 35 V minimum; (7)TTL, DTL, PMOS, or CMOS compatible inputs; (8)Internal Thermal Shut Down (TSD).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UDN2987LWTR-6-T |
|
IC SOURCE DRIVER 8CH 20-SOIC |
Data Sheet |
|
|
||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||
 |
UDN2540B |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
|
UDN2559B |
|
IC DRIVER QUAD PROTECTED 16DIP |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
UDN2559BT |
|
IC DRIVER QUAD PROTECTED 16DIP |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
UDN2559B-T |
|
IC DRIVER QUAD PROTECTED 16DIP |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
UDN2559EB |
|
IC DRIVER QUAD PROTECTED 28PLCC |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
UDN2559EBTR |
|
IC DRIVER QUAD PROTECTED 28PLCC |
Data Sheet |
Negotiable |
|
||||||||||||||||
