Product Summary
The VSP2232Y/2K is a complete mixed-signal processing IC for digital cameras that provides signal conditioning and analog-to-digital conversion for the output of a CCD array. The VSP2232Y/2K is pin-to-pin compatible with the VSP2262Y (12-bit 20 MHz) one-chip product.The The VSP2232Y/2K is available in a 48-pin LQFP package and operates from a single 3-V/3.3-V supply.
Parametrics
VSP2232Y/2K absolute maximum ratings: (1) Supply voltage (Vcc, DRVDD) : 4V; (2) Supply voltage differences (among VCC) : ±0.1V; (3) Ground voltage differences (among GNDA) : ±0.1V; (4) Digital input voltage: -0.3 to 5.3V; (5) Analog input voltage: -0.3 to VCC +0.3V; (6) Input current (any pins except supplies) : ±10mA; (7) Operating temperature, TA: -25 to 85°C; (8) Storage temperature, Tstg: -55 to 125°C; (9) Junction temperature, Tj: 150°C; (10) Lead temperature (soldering) Tj: 260°C, 5 sec; (11) Package temperature (IR Reflow, Peak) : 235°C, 10 sec.
Features
VSP2232Y/2K features: (1) CCD Signal Processing; (2) Programmable Gain Amplifier (PGA) ; (3) 10-Bit Digital Data Output; (4) 76-dB Signal-to-Noise Ratio; (5) Portable Operation, C Low Voltage: 2.7V to 3.6V, Low Power: 130mW (typ) at 3.0V, Standby Mode: 6mW.

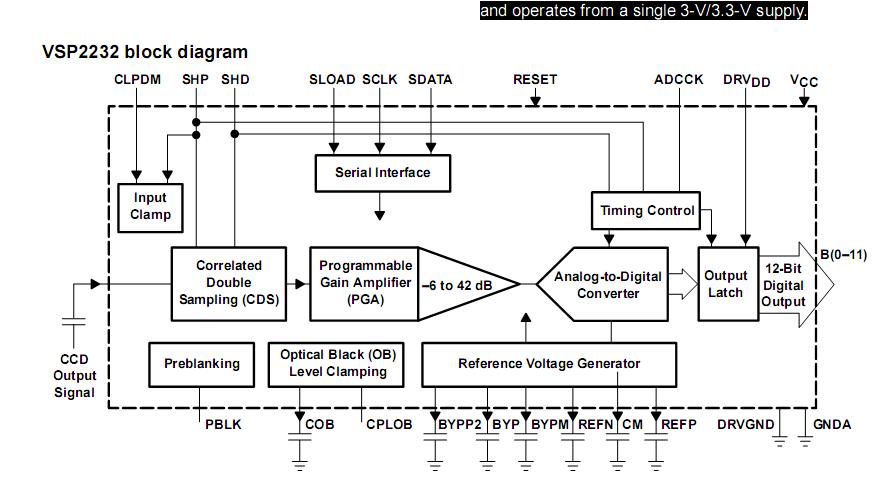

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() VSP2232Y/2K |
![]() Texas Instruments |
![]() Video A/D Converter ICs 12-Bit 36Msps Signal Processor |
![]() Data Sheet |
![]()
|
|
||||||||
![]() |
![]() VSP2232Y/2KG4 |
![]() Texas Instruments |
![]() Video A/D Converter ICs 12-Bit 36Msps Signal Processor |
![]() Data Sheet |
![]()
|
|
