Product Summary

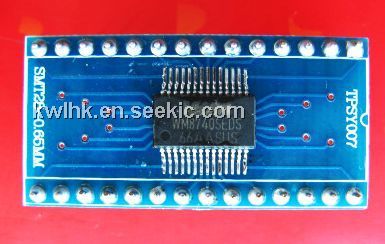

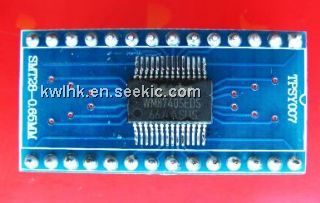

The WM8740SEDS is a 24-bit, high performance 192kHz stereo DAC. It can be used in (1)CD, DVD audio; (2)Home theatre systems; (3)Professional audio systems. It also includes a digitally controllable mute and attenuator function on each channel.
Parametrics
WM8740SEDS absolute maximum ratings: (1)Supply voltage: -0.3V to +7.0V; (2)Input voltage: GND-0.3V to VDD+0.3V; (3)Operating temperature range, TA: -25°C to +85°C; (4)Storage temperature prior to soldering: 30°C max / 85% RH max; (5)Storage temperature after soldering: -65°C to +150°C.
Features
WM8740SEDS features: (1)120dB SNR ("A" weighted mono @48kHz), THD+N: -104dB @ FS; (2)117dB SNR ("A" weighted stereo @48kHz), THD+N: -104dB @ FS; (3)Sampling frequency: 8kHz to 192kHz; (4)Selectable digital filter roll-off; (5)Optional interface to industry standard external filters; (6)Differential mono mode needing no glue logic; (7)Input data word: 16 to 24-bit; (8)Hardware or SPI compatible serial port control modes: Hardware mode: mute, de-emphasis, audio format control. Serial mode: mute, de-emphasis, attenuation (256 steps), phase reversal; (9)Fully differential voltage outputs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 WM8740SEDS |
Wolfson Microelectronics |
Audio D/A Converter ICs Stereo DAC High End |
Data Sheet |
Negotiable |
|
||||||||||||
|
WM8740SEDS/R |
Wolfson Microelectronics |
Audio D/A Converter ICs Stereo DAC High End |
Data Sheet |
Negotiable |
|
||||||||||||
|
WM8740SEDS/V |
Wolfson Microelectronics |
Audio D/A Converter ICs Stereo DAC High End |
Data Sheet |
|
|
||||||||||||
 |
WM8740SEDS/RV |
Wolfson Microelectronics |
Audio D/A Converter ICs Stereo DAC High End |
Data Sheet |
|
|
||||||||||||
