Product Summary

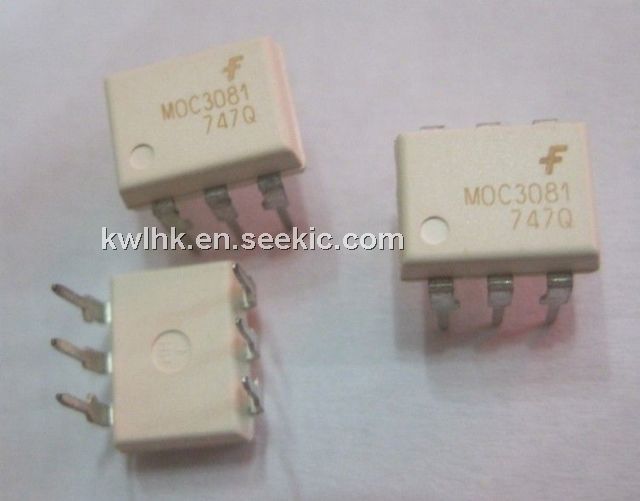

The MOC3081 is a 6-Pin DIP Zero-Cross Optoisolator. The MOC3081 consists of gallium arsenide infrared emitting diodes optically coupled to monolithic silicon detectors performing the function of Zero Voltage Crossing bilateral triac drivers. The MOC3081 is designed for use with a triac in the interface of logic systems to equipment powered from 240 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc. Applications are (1)Solenoid/Valve Controls; (2)Temperature Controls; (3)Lighting Controls; (4)E.M. Contactors; (5)Static Power Switches; (6)AC Motor Starters; (7)AC Motor Drives; (8)Solid State Relays.
Parametrics
MOC3081 absolute maximum ratings: (1)Reverse Voltage VR: 6 Volts; (2)Forward Current — Continuous IF: 60 mA; (3)Total Power Dissipation @ TA = 25°C PD: 120 mW; (4)Junction Temperature Range TJ: -40 to +100 °C; (5)Ambient Operating Temperature Range(2)TA: -40 to +85 °C; (6)Storage Temperature Range(2)Tstg: -40 to +150 °C; (7)Soldering Temperature (10 s)TL: 260 °C.
Features
MOC3081 features: (1)Simplifies Logic Control of 240 Vac Power; (2)Zero Voltage Crossing; (3)dv/dt of 1500 V/ms Typical, 600 V/ms Guaranteed.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MOC3081 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
MOC3081FM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin800V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3081FR2M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin800V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3081FR2VM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin800V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3081FVM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin800V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3081M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 800V Optocoupler Triac Driver ZC |
Data Sheet |
|
|
||||||||||||
|
MOC3081-M |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3081SM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin800V Optocoupler Zero Cross Triac Dr |
Data Sheet |
|
|
||||||||||||
