Product Summary
The CNY17F-3 is an optocoupler consisting af a Gallium Arsenide infrared emitting diode optically coupled to a silicon planar phototransistor detector in a plastic plug-in DIP-6 package. The CNY17F-3is suitable for signal transmission between two electrically separated circuits. The potential difference between the circuits to be coupled is not allowed to exceed the maximum permissible reference voltages.
Parametrics
CNY17F-3 absolute maximum ratings: (1)Reverse voltage, VR: 6.0 V; (2)DC forward current, IF: 60 mA; (3)Surge forward current, t ≤ 10 μs, IFSM: 2.5 A; (4)Collector-emitter breakdown voltage, BVCEO: 70 V; (5)Collector current, IC: 50 mA; t ≤ 1.0 ms, IC: 100 mA; (6)Storage temperature range, Tstg: - 55 to + 150 ℃; (7)Ambient temperature range, Tamb: - 55 to + 100 ℃; (8)Junction temperature, Tj: 100 ℃.
Features
CNY17F-3 features: (1)Breakdown Voltage, 5300 VRMS; (2)No Base Terminal Connection for Improved Common Mode Interface Immunity; (3)Long Term Stability; (4)Industry Standard Dual-in-Line Package; (5)Lead-free component; (6)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

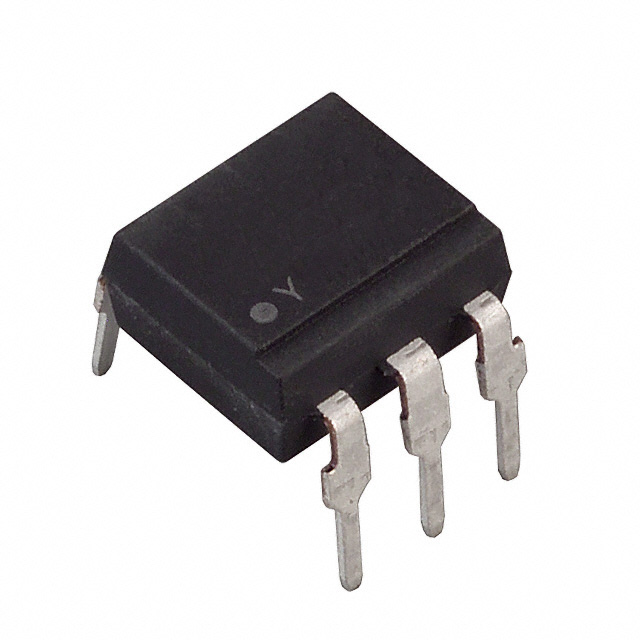

 CNY17F-3 |
Vishay Semiconductors |
Transistor Output Optocouplers Phototransistor Out Single CTR 100-200% |
Data Sheet |
|
|
||||||||||||||
 |
CNY17F-3M |
Everlight |
Transistor Output Optocouplers 100-200CTR 5000Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
 |

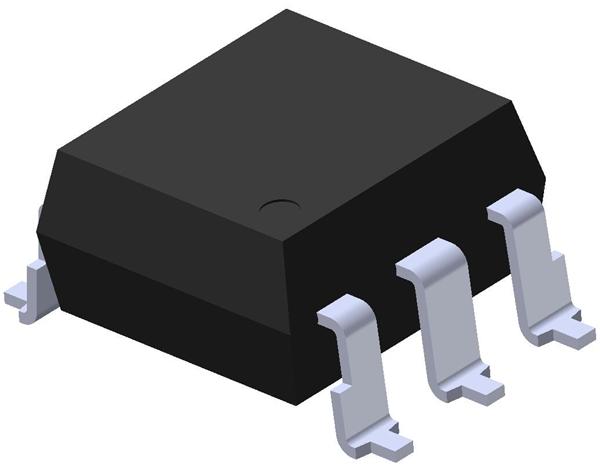

CNY17F-3S(TA) |
Everlight |
Transistor Output Optocouplers 100-200CTR 5000Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
 |

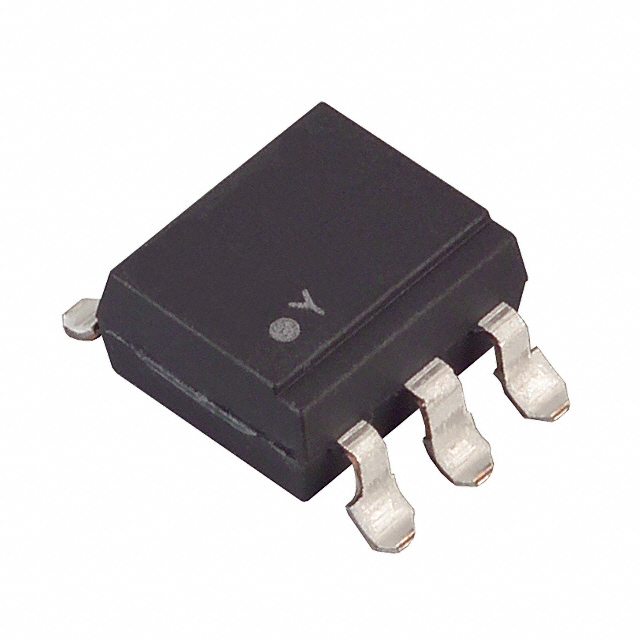

CNY17F-3S |
Lite-On |
Transistor Output Optocouplers Optocoupler Phototrans |
Data Sheet |
|
|
||||||||||||||
 |
CNY17F-3S(TA)-V |
Everlight |
Transistor Output Optocouplers 100-200CTR 5000Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
CNY17F-3M-V |
Everlight |
Transistor Output Optocouplers 100-200CTR 5000Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
CNY17F-3S(TB) |
Everlight |
Transistor Output Optocouplers 100-200CTR 5000Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
CNY17F-3S(TB)-V |
Everlight |
Transistor Output Optocouplers 100-200CTR 5000Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
