Product Summary
The D207 is a High Isolation Miniature, 2W SIP DC/DC Converter.
Parametrics
D207 absolute maximum ratings: (1)input voltage range: 4.5 to 5.5 vdc; (2)reverse polarity input current: 0.3 a; (3)ripple & noise (20 mhz)(note 2): 75 mv p - p; (4)isolation voltage: 3000 vdc; (5)isolation resistance: 1000 mω; (6)isolation capacitance: 60 pf; (7)switching frequency: 125 khz; (8)operating temperature range: -40 to +85 oc; (9)operating temperature range: 100°c.
Features
D207 features: (1)2W Output Power; (2)3,000 VDC Isolation; (3)Miniature SIP Case; (4)Single & Dual Outputs; (5)>2 MHour MTBF; (6)28 Standard Models; (7)Industry Standard Pin-Out.

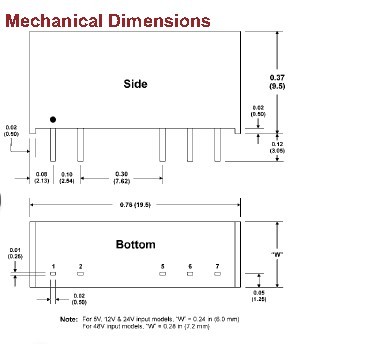

Diagrams
