Product Summary

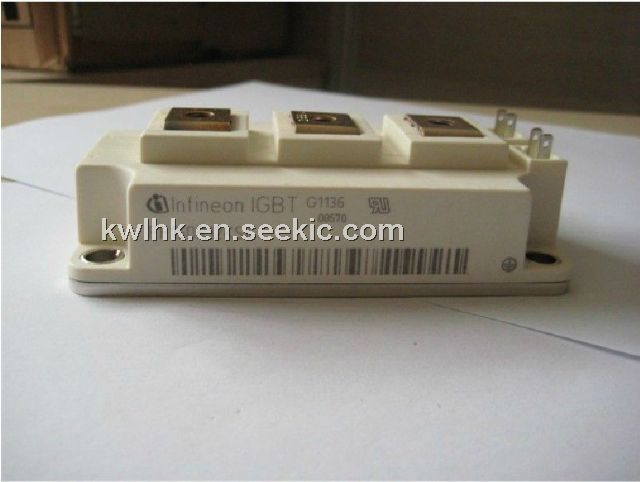

The BSM25GB120DN2 is an IGBT Power Module.


Parametrics

BSM25GB120DN2 absolute maximum ratings: (1)Collector-emitter voltage VCE: 1200 V; (2)Collector-gate voltage RGE = 20 kΩ VCGR: 1200 V; (3)Gate-emitter voltage VGE: ± 20 V; (4)DC collector current TC = 25 °C IC: 38 A; (5)Pulsed collector current, tp = 1 ms TC = 25 °C ICpuls: 76 A; (6)Power dissipation per IGBT TC = 25 °C Ptot : 200 W; (7)Chip temperature Tj: + 150 °C; (8)Storage temperature Tstg: -55 ... + 150°C; (9)Thermal resistance, chip case RthJC: ≤ 0.6 K/W; (10)Insulation test voltage, t = 1min. Vis: 2500 Vac.

Features

BSM25GB120DN2 features: (1)Half-bridge; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

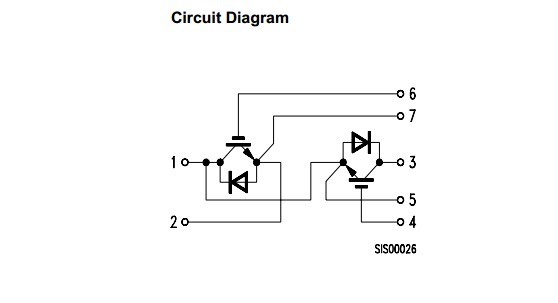

BSM25GB120DN2 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM25GB120DN2
BSM25GB120DN2
Infineon Technologies
IGBT Modules 1200V 25A DUAL
Data Sheet
0-1: $30.61
1-10: $27.55
