Product Summary

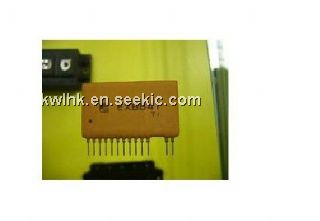

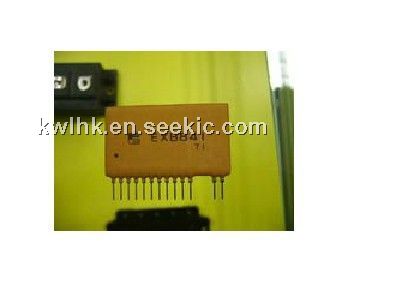

The EXB841-01R is an insulated gate bipolar transistor. It is used in small, low-noise, high-performance power supplies, inverters, uniterruptable power supplies, and motor speed controls. The applications of the EXB841-01R include: general-purpose inverter and motor control, servo control, uninterruptable power supplies(UPS), welding machines.
Parametrics
EXB841-01R absolute maximum ratings: (1)Supply voltage: 25V; (2)Photocoupler input current: 25mA; (3)Forward bias output current: 1.5~4.0A; (4)Reverse bias output current: 1.5~4.0A; (5)Input/Output isolation voltage: 2500V; (6)Operating surface temperature: -25 to +85℃; (7)Storage temperature: -25 to +125℃; (8)Recommended operating conditions: Supply voltage ±20V; Photocoupler input current: 10mA.
Features
EXB841-01R features: (1)Various series; (2)Standard series: For up to 10 kHz operation; (3)High-speed series: For up to 40 kHz operation; (4)These series cover the full range of IGBT products; (5)Built-in photocoupler for high isolation voltage: 2500V AC for one minute; (6)Single supply operation; (7)Built-in overcurrent protection circuit; (8)Overcurrent detection outpur; (9)SIL package for high-density mounting.
Diagrams
