Product Summary

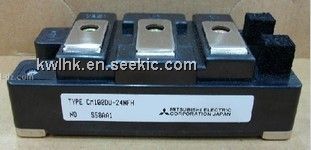

The CM100DU-24NFH is a Mitsubishi IGBT Module. The applications of the CM100DU-24NFH include General purpose inverters & Servo controls, etc.

Parametrics

CM100DU-24NFH absolute maximum ratings: (1)Collector-emitter voltage, G-E Short, VCES: 600V; (2)Gate-emitter voltage, C-E Short, VGES: ±20V; (3)Collector current, TC= 25℃, IC: 100A; (4)Collector current, pulse, ICM: 200A; (5)Emitter current, TC= 25℃, IE: 100A; (6)Emitter current, pulse, IEM: 200A; (7)Maximum collector dissipation, TC= 25℃, PC: 350W; (8)Junction temperature, TJ: -40 to +150℃; (9)Storage temperature, Tstg: -40 to +125℃; (10)Isolation voltage, Viso: 2500Vrms.

Features

CM100DU-24NFH features: (1)IC: 100A; (2)VCES: 600V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

CM100DU-24NFH pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM100DU-24NFH
CM100DU-24NFH

IGBT MOD DUAL 1200V 100A NFH SER
Data Sheet
0-1: $55.13
1-10: $51.69
10-100: $46.52
100-250: $44.80
250-500: $44.11
500-1000: $42.04
1000-2500: $41.35
