Product Summary
The CM100DU-24F is a MITSUBISHI IGBT module. The applications of the CM100DU-24F include General purpose inverters & Servo controls, etc.
Parametrics
CM100DU-24F absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector current, IC: 100A; ICM: 200A; (4)Emitter current, IE: 100A; IEM: 200A; (5)Maximum collector dissipation, PC: 500W; (6)Junction temperature, TJ: -40 to 150℃; (7)Storage temperature, Tstg: -40 to 125℃; (8)Isolation voltage, Visol: 2500Vrms.
Features
CM100DU-24F features: (1)IC: 100A; (2)VCES: 1200V; (3)Insulated Type; (4)2-elements in a pack.

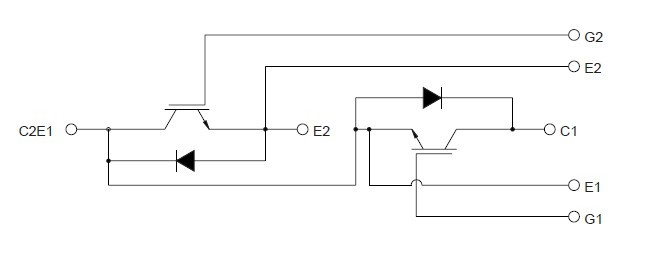

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM100DU-24F |
|
IGBT MOD DUAL 1200V 100A F SER |
Data Sheet |
|
|
||||||
