CM50DY-24H

CM50DY-24H, igbt module, 600v, 50a, 250w, dip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $19.62~22.89 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	22.89 / Piece
500 ~ 1000 :	21.26 / Piece
1000 ~ 1500 :	19.62 / Piece

PartNumber:: CM50DY-24H

Brand:: eupec GmbH - EUPEC | D/C: 11+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-16

From Other Seller

Part Number:CM50DY-24H
US $19.62 - 22.89
Quantity:

piece

Product Summary

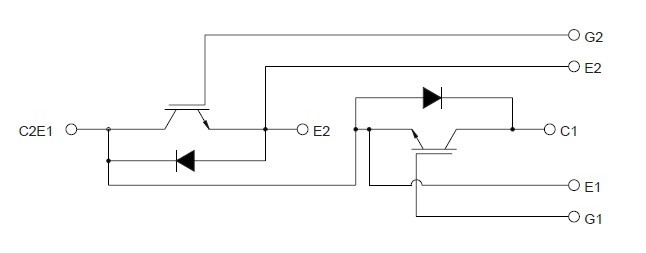

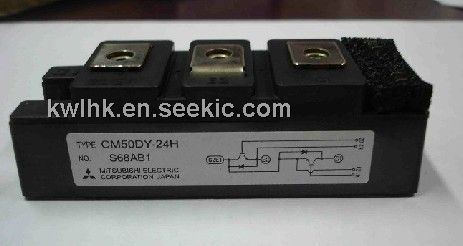

The CM50DY-24H is a Mitsubishi IGBT Module designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects of the CM50DY-24H are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. It is ideal for: (1)AC Motor Control; (2)Motion/Servo Control; (3)UPS; (4)Welding Power Supplies.

Parametrics

CM50DY-24H absolute maximum ratings: (1)Junction Temperature Tj: -40 to 150 ℃; (2)Storage Temperature Tstg: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20 Volts; (5)Collector Current (Tc = 25℃) IC: 50 Amperes; (6)Peak Collector Current (Tj ≤ 150℃) ICM: 100* Amperes; (7)Emitter Current** (Tc = 25℃) IE: 50 Amperes; (8)Peak Emitter Current** IEM: 100* Amperes; (9)Maximum Collector Dissipation (Tc = 25℃) Pc: 250 Watts; (10)Mounting Torque, M5 Main Terminal: 1.47 to1.96 N · m; (11)Mounting Torque, M6 Mounting: 1.96 to 2.94 N · m; (12)Weight:190 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.

Features

CM50DY-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
