Product Summary

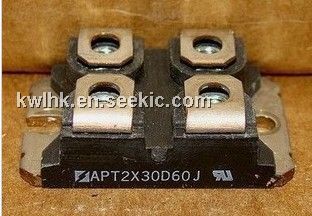

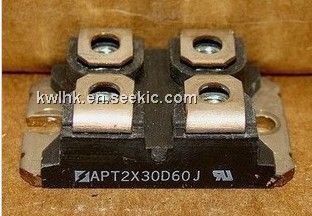

The APT2X30D60J is an ultrafast soft recovery dual rectifier diode. It is suitable for Anti-Parallel Diode, Switchmode Power Supply, Inverters, Free Wheeling Diode, Motor Controllers, Converters, Snubber Diode, Uninterruptible Power Supply (UPS), Induction Heating and High Speed Rectifiers.

Parametrics

APT2X30D60J absolute maximum ratings: (1)VR, Maximum D.C. Reverse Voltage: 1000 Volts; (2)VRRM, Maximum Peak Repetitive Reverse Voltage: 1000 Volts; (3)VRWM, Maximum Working Peak Reverse Voltage: 1000 Volts; (4)IF(AV), Maximum Average Forward Current (TC = 85℃, Duty Cycle = 0.5): 30 Amps; (5)IF(RMS), RMS Forward Current: 70 Amps; (6)IFSM, Non-Repetitive Forward Surge Current (TJ= 45℃, 8.3ms): 210 Amps; (7)Tj, Tstg, Operating and StorageTemperature Range: -55 to 150℃; (8)TL, Lead Temperature: 0.063inch from Case for 10 Sec: 300℃.

Features

APT2X30D60J features: (1)Ultrafast Recovery Times; (2)Soft Recovery Characteristics; (3)Popular SOT-227 Package; (4)Low Forward Voltage; (5)High Blocking Voltage; (6)Low Leakage Current.

Diagrams

APT2X30D60J pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
APT2X30D60J
APT2X30D60J


DIODE DUAL 30A 600V SOT-227

Data Sheet

0-1: $10.33
1-10: $9.39
10-100: $7.98
100-250: $7.28
250-500: $6.81
500-1000: $6.52
