Product Summary

The FF150R12MS4G is an IGBT-Module.

Parametrics

FF150R12MS4G maximum rated values: (1)collector-emitter voltage VCES: 1200 V; (2)IC,nom.: 150 A; (3)DC-collector current IC: 225 A; (4)repetitive peak collector current ICRM: 300 A; (5)total power dissipation Ptot: 780 W; (6)gate-emitter peak voltage VGES: +/- 20 V.

Features

FF150R12MS4G characteristic values: (1)VCE sat: 1.7 to 2.15 V; (2)collector-emitter saturation voltage: 2 V; (3)gate threshold voltage: 5.0 to 6.5 V; (4)input capacitance Cies: 11.0 nF; (5)collector-emitter cut-off current ICES: 5.0 mA; (7)gate-emitter leakage current IGES: 400 nA.

Diagrams

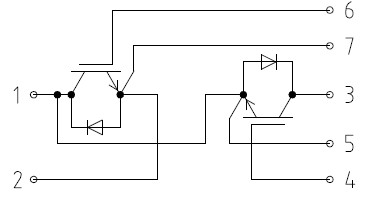

FF150R12MS4G pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF150R12MS4G
FF150R12MS4G
Infineon Technologies
IGBT Modules N-CH 1.2KV 225A
Data Sheet
0-6: $79.63
6-10: $72.39
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF150R12KE3_B8
FF150R12KE3_B8
Infineon Technologies
IGBT Modules IGBT 1200V 150A
Data Sheet
0-6: $113.40
6-10: $102.00
FF150R12KE3G
FF150R12KE3G
Infineon Technologies
IGBT Modules 1200V 150A DUAL
Data Sheet
0-1: $75.44
1-10: $67.90
FF150R12KE3G_B2
FF150R12KE3G_B2
Infineon Technologies
IGBT Modules N-CH 1.2KV 225A
Data Sheet
0-6: $73.85
6-10: $66.47
FF150R12KS4
FF150R12KS4
Infineon Technologies
IGBT Modules 1200V 150A DUAL
Data Sheet
0-6: $82.62
6-10: $74.36
FF150R12KS4_B2
FF150R12KS4_B2
Infineon Technologies
IGBT Modules N-CH 1.2KV 225A
Data Sheet
0-6: $73.06
6-10: $65.75
FF150R12KT3G
FF150R12KT3G
Infineon Technologies
IGBT Modules N-CH 1.2KV 225A
Data Sheet
0-6: $73.85
6-10: $66.47
