Product Summary
The FSBB15CH60C is an advanced smart power module (SPMTM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting lowpower inverter-driven application like air conditioner and washing machine. It combines optimized circuit protection and drive matched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and shortcircuit protection. The high speed built-in HVIC provides optocoupler-less single-supply IGBT gate driving capability that further reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided negative dc terminals. It is ideal for: (1)AC 100V ~ 253V three-phase inverter drive for small power ac motor drives; (2)Home appliances applications like air conditioner and washing machine.
Parametrics
FSBB15CH60C maximum ratings: (1)VPN Supply Voltage: 450 V; (2)VPN(Surge)Supply Voltage (Surge): 500 V; (3)VCES Collector-emitter Voltage: 600 V; (4)± IC Each IGBT Collector Current: 15 A; (5)± ICP Each IGBT Collector Current (Peak): 30 A; (6)PC Collector Dissipation TC = 25°C per One Chip: 50 W; (7)TJ Operating Junction Temperature (Note 1): -20 to 125 °C .
Features
FSBB15CH60C features: (1)UL Certified No.E209204 (SPM27-CA package); (2)Very low thermal resistance due to using DBC; (3)600V-15A 3-phase IGBT inverter bridge including control ICs for gate driving and protection; (4)Divided negative dc-link terminals for inverter current sensing applications; (5)Single-grounded power supply due to built-in HVIC; (6)Isolation rating of 2500Vrms/min.

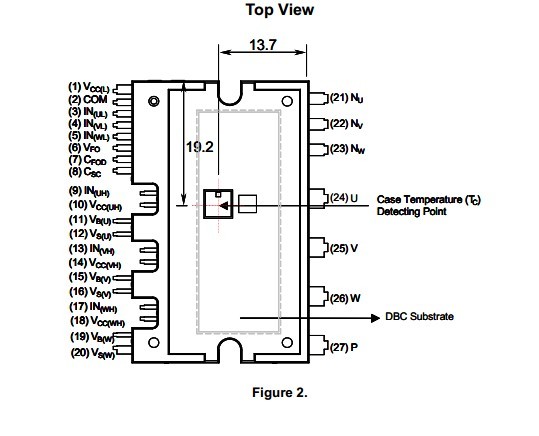

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FSBB15CH60C |
Fairchild Semiconductor |
IGBT Transistors 600V -15A 3 Phase |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
FSBB15CH60 |
Fairchild Semiconductor |
IGBT Transistors HIGH_POWER |
Data Sheet |
|
|
||||||||||||
|
FSBB15CH60B |
Fairchild Semiconductor |
IGBT Transistors 600V -15A 3-phase |
Data Sheet |
Negotiable |
|
||||||||||||
|
FSBB15CH60BT |
Fairchild Semiconductor |
IGBT Transistors 600V -15A 3-phase |
Data Sheet |
Negotiable |
|
||||||||||||
|
FSBB15CH60C |
Fairchild Semiconductor |
IGBT Transistors 600V -15A 3 Phase |
Data Sheet |
|
|
||||||||||||
|
FSBB15CH60F |
Fairchild Semiconductor |
IGBT Transistors 600V SPM |
Data Sheet |
|
|
||||||||||||
|
FSBB20CH60 |
Fairchild Semiconductor |
IGBT Modules HIGH_POWER |
Data Sheet |
|
|
||||||||||||
