Product Summary

The FF200R12KE4 is an IGBT-Module.

Parametrics

FF200R12KE4 absolute maximum ratings: (1)collector emitter voltage: 1200V; (2)DC collector current: 200A; (3)repetitive peak collector current: 400A; (4)total power dissipation: 1050W; (5)gate emitter peak voltage: ±20V.

Features

FF200R12KE4 features: (1)forward voltage: 1.65V; (2)peak reverse recovery current: 150A; (3)recovered charge: 20μC; (4)reverse recovery energy: 9 mJ; (5)thermal resistance, junction to case: 0.20K/W.

Diagrams

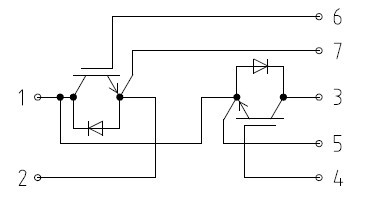

FF200R12KE4 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF200R12KE4
FF200R12KE4
Infineon Technologies
IGBT Modules IGBT-MODULE
Data Sheet
0-6: $79.84
6-10: $72.58
