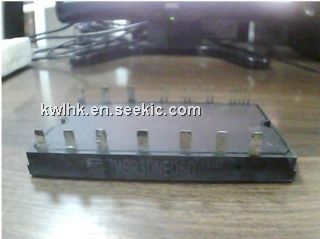

Product Summary

The 7MBR30NE060 is an IGBT module. Its applications include Inverter for Motor Drive, AC and DC Servo Drive Amplifier and Uninterruptible Power Supply.

Parametrics

7MBR30NE060 absolute maximum ratings: (1)Collector-Emitter Voltage(Inverter): 600V; (2)Gate -Emitter Voltage(Inverter): ± 20V; (3)Collector Power Dissipation(Inverter): 200W; (4)Collector Current-IC(Inverter): 30A; (5)Collector Current-ICP(Inverter): 60A; (6)Collector Current--IC(Inverter): 30A; (7)Operating Junction Temperature: +150℃; (8)Storage Temperature: -40 ~ +125℃; (9)Isolation Voltage: AC2500 V; (10)Mounting Screw Torque: 1.7 Nm.

Features

7MBR30NE060 features: (1)High Speed Switching; (2)Voltage Drive; (3)Low Inductance Module Structure; (4)Converter Diode Bridge Dynamic Brake Circuit.

Diagrams

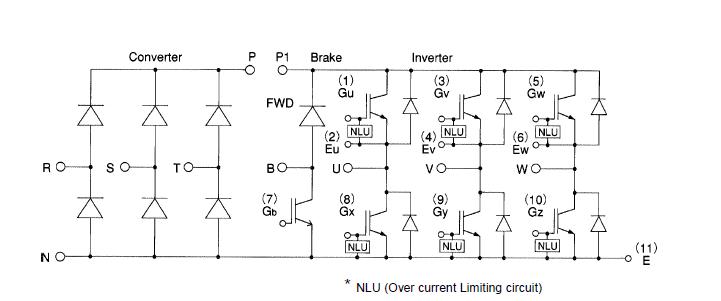

7MBR30NE060 pin connection
