Product Summary

The FPDB30PH60 is an advanced smart power module of pfc(power factor correction) that fairchild has newly developed and designed mainly targeting mid-power application especially for an air conditioners. It combines optimized circuit protection and drive ic matched to high frequency switching igbts. system reliability is futher enhanced by the integrated under-voltage lock-out and over-current protection function. It is ideal for: AC 180V ~ 264V single-phase front-end rectifier.

Parametrics

FPDB30PH60 absolute maximum ratings: (1)supply voltage vi applied between r-s: 264 vrms; (2)supply voltage (surge)vi(surge)applied between r-s: 500 v; (3)output voltage vpn applied between p- n: 450 v; (4)output voltage (surge)vpn(surge)applied between p- n: 500 v; (5)collector-emitter voltage vces: 600 v; (6)input current (100% load)ii tc < 95°c, vi=220v, vpn= 390v, vpwm=20khz: 20 a; (7)input current (125% load)ii(125%)tc < 95°c, vi=220v, vpn= 390v, vpwm=20khz, 1min non-repetitive: 25 a; (8)collector dissipation pc tc = 25°c per one igbt: 83 w; (9)power rating of shunt resistor prsh tc < 125°c: 2 w; (10)operating junction temperature tj (note 1): -20 ~ 125 °c.

Features

FPDB30PH60 features: (1)low thermal resistance due to al2o3-dbc substrate; (2)600v-30a 2-phase igbt pwm semi-converter including a drive ic for gate driving and protection; (3)typical switching frequency of 20khz; (4)isolation rating of 2500vrms/min.

Diagrams

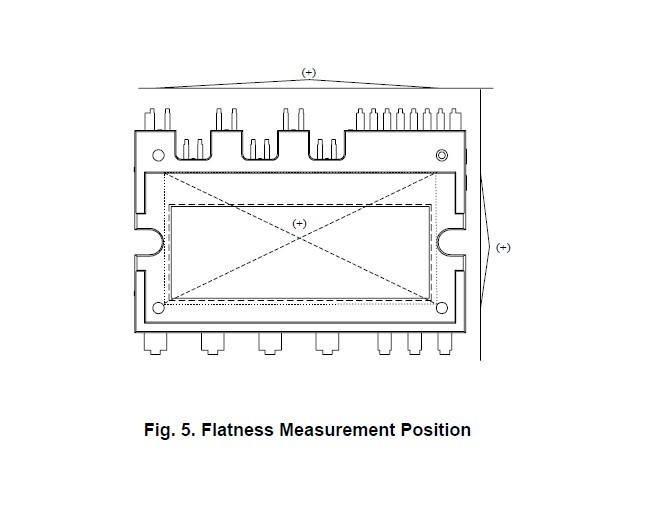

FPDB30PH60 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FPDB30PH60
FPDB30PH60
Fairchild Semiconductor
IGBT Transistors 600V -30A IGBT SMART POWER M
Data Sheet
0-1: $14.67
1-25: $12.47
25-100: $11.59
100-250: $10.63
