Product Summary

The FZ1000R16KL4C is a transistor. Applications are (1)chopper applications; (2)medium voltage converters; (3)motor drivers; (4)traction drivers; (5)UPS systems; (6)wind turbines.

Parametrics

FZ1000R16KL4C absolute maximum ratings: (1)collector-emitter voltage, VCES: 2500 V; (2)DC-collector current, IC: 1000 A; (3)repetitive peak collector current, ICRM: 2000 A; (4)total power dissipation, Ptot: 10,4 kW; (5)gate-emitter peak voltage, VGES: +/- 20V V; (6)DC forward current, IF: 1000 A; (7)repetitive peak forw. current, IFRM: 2000 A.

Features

FZ1000R16KL4C features: (1)forward voltage, VF: 2.3 to 2.7V; (2)peak reverse recovery current, IRM: 950 A; (3)recovered charge, QWr: 520μAs.

Diagrams

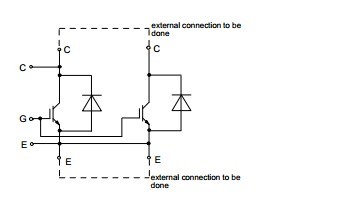

FZ1000R16KL4C pin connection
