Product Summary

The FZ900R16KL4C is an IGBT module. The applications of the FZ900R16KL4C include high power converters, motor drives, UPS systems, wind turbines.

Parametrics

FZ900R16KL4C absolute maximum ratings: (1)collector emitter voltage: 1200V; (2)DC-collector current: 900A; (3)repetitive peak collector current: 1800A; (4)total power dissipation: 4300W; (5)gate-emitter peak voltage: ±20V.

Features

FZ900R16KL4C features: (1)Extended operation temperature Tvjop; (2)Low VCEsat; (3)Unbeatable robustness; (4)VCEsat with positive temperature coefficient.

Diagrams

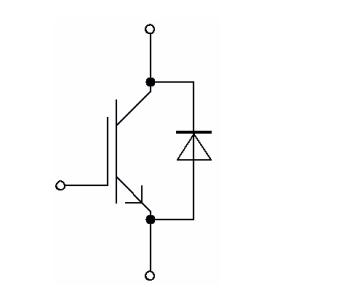

FZ900R16KL4C pin connection
