Product Summary

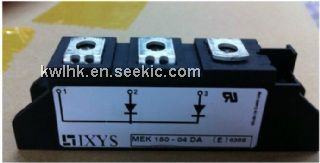

The MEK150-04DA is a fast recovery epitaxial diode (FRED) module. Applications are (1)Antiparallel diode for high frequency switching devices; (2)Free wheeling diode in converters and motor control circuits; (3)Inductive heating and melting; (4)Uninterruptible power supplies (UPS); (5)Ultrasonic cleaners and welders.
Parametrics
MEK150-04DA absolute maximum ratings: (1)IFRMS: 200 A; (2)IFAVM, TC = 100; rectangular, d = 0.5: 150 A; (3)IFSM, TVJ = 45℃; t = 10 ms (50 Hz), sine: 1200 A; (4)TVJ: -40 to +150 ℃; (5)TVJM: 175 ℃; (6)Tstg: -40 to +150 ℃; (7)Ptot, TC = 25℃: 360 W; (8)VISOL, 50/60 Hz, RMS; IISOL ≤ 1 mA: 3600 V~; (9)Md, Mounting torque with screw M5: 2.5-4/22-35 Nm/lb.in.; Terminal connection torque: 2.5-4/22-35 Nm/lb.in.; (10)Weight, typical: 90 g.
Features
MEK150-04DA features: (1)International standard package with DCB ceramic base plate; (2)Planar passivated chips; (3)Short recovery time; (4)Low switching losses; (5)Soft recovery behaviour; (6)Isolation voltage 3600 V~; (7)UL registered E 72873.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MEK150-04DA |
![]() Ixys |
![]() Discrete Semiconductor Modules 300 Amps 400V |
![]() Data Sheet |
![]() Negotiable |
|
||||
