Product Summary

The BSM150GB170DLC is an IGBT module.

Parametrics

BSM150GB170DLC absolute maximum ratings: (1)collector-emitter voltage:600V; (2)repetitive peak collector current:300A; (3)total power dissipation:1250W; (4)gate-emitter peak voltage:±20V; (5)DC-collector current: TC=80℃, Tvj=150℃:150A, TC=25℃, Tvj=150℃:300A.

Features

BSM150GB170DLC features: (1)gate threshold voltage:4.5V to 6.5V; (2)gate charge:1.60μC; (3)internal gate resistor:2.5Ω; (4)input capacitance:11.0nF; (5)reverse transfer capacitance:0.70nF; (6)collector-emitter cut-off current:5.0mA; (7)gate-emitter leakage current:400nA.

Diagrams

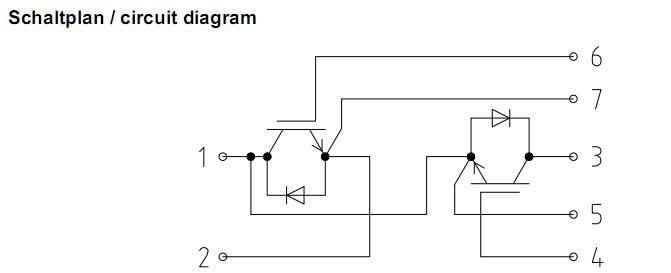

BSM150GB170DLC pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM150GB170DLC
BSM150GB170DLC
Infineon Technologies
IGBT Modules 1700V 150A DUAL
Data Sheet
0-6: $107.75
6-10: $96.97
