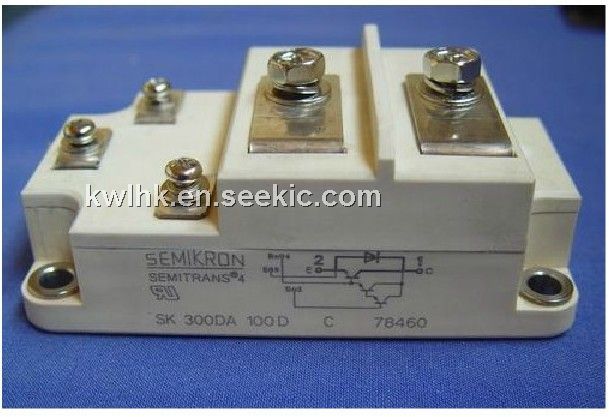

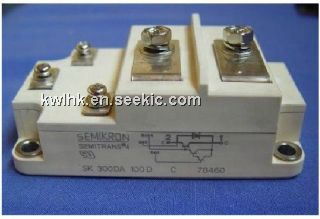

Product Summary

The SK300DA100D is a mosfet module. Applications are (1)Low switched mode power supplies; (2)DC servo drives; (3)UPS.

Parametrics

SK300DA100D absolute maximum ratings: (1)VDSS: 75 V; (2)VGSS: ±20 V; (3)丨D, Ts = 25 ℃; 1): 290 A; (4)IDM, tp < 1 ms; Ts = 25 (80)°C: 580 A; (5)Tj: -40 to +150 ℃; (6)IF=- ID, Ts = 25 ℃: 290 A; (7)IFM = -IDM, tp < 1 ms; Ts = 25 ℃: 580 A; (8)Tj: -40 to +150 ℃.

Features

SK300DA100D features: (1)Compact design; (2)One screw mounting; (3)Heat transfer and isolation through direct copper bonded aluminium oxide ceramic (DCB); (4)Trench technology; (5)Short internal connections and low inductance case.

Diagrams

SK300DA100D pin connection
