Product Summary

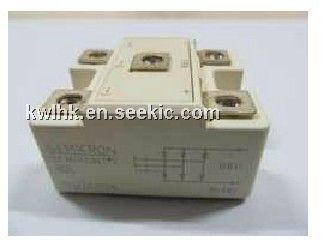

The SKD100 is a power bridge rectifier.

Parametrics

SKD100 absolute maximum ratings: (1)ID TC=45℃: 24 A; (2)IFSM Tvj= 25℃, 10 ms: 1150 A; (3)i2t Tvj= 25℃, 8.3 to 10 ms: 6600 A2s; (4)VF Tvj= 25℃, IF= 150 A: 1.35 V; (5)VTO Tvj= 125℃: 0.85 V; (6)FT Tvj= 125℃: 5 mΩ; (7)Rth(j-c) per diode: 0.85 K/W; (8)Tvj: -40℃ to +125℃.

Features

SKD100 features: (1)robust plastic case with screw terminal; (2)large, isolated base plate; (3)blocking voltage to 1600 V; (4)High surge currents; (5)three phase bridge rectifier; (6)easy chassics mounting; (7)UL recognized, file NO. E 63532.

Diagrams

SKD100 pin connection
