Product Summary
The FZ800R12KF1 is an IGBT-module.
Parametrics
FZ800R12KF1 absolute maximum ratings: (1)Kollektor emitter sperrspannung collector emitter voltage, VCES: 1200V; (2)Kollektor dauergleichstrom DC-collector current, ICbnom: 800A; (3)Periodischer kellektor spitzenstrom repetitive peak collector current, ICRM: 1600A; (4)Gesamt-verlustleistung tatal power dissipation, Ptot: 3550W; (5)Gate emitter spitzenspannung gate emitter peak voltage, VGES: +/-20V.
Features
FZ800R12KF1 features: (1)Low switching losses; (2)Unbeatable robustness; (3)VCEsat with positive temperature coefficient; (4)Low VCEsat.

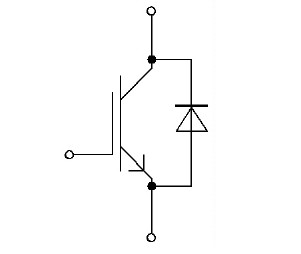

Diagrams
