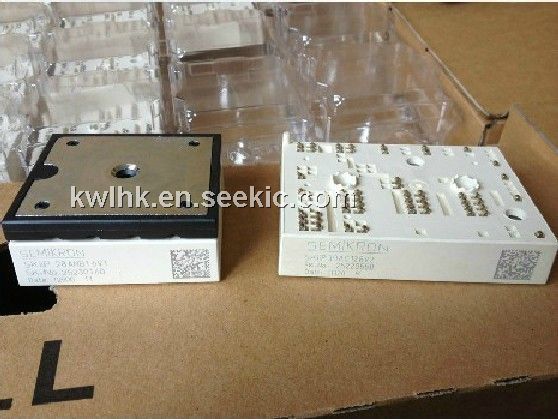

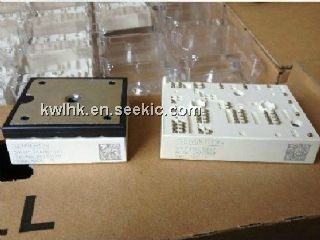

Product Summary

The SKIIP25NAB065V1is a 3-phase bridge inverter. The applications of the SKIIP25NAB065V1 include inverter and motor motor power.

Parametrics

SKIIP25NAB065V1 absolute maximum ratings: (1)VCES: 1200V; (2)On the conditions of Ts=25(70)℃, IC: 73(55)A; (3)On the conditions of tp≤1ms,ICRM: 100A; (4)VGES: ±20V; (5)Tj: -40~+150℃; (6)If: 62(46)A; (7)On the conditions of Ts=70℃, IFRM: 100A; (8)VRRM: 1600V; (9)On the conditions of tp=10ms, sin 180°, Tj=25℃, i2t: 240A2s; (10)Itrms: 100A; (11)Tstg: -40 to 125℃; (12)Visol: 2500V.

Features

SKIIP25NAB065V1 features: (1)Trench IGBTs; (2)Robust and soft freewheeling diodes in CAL technology; (3)Highly reliable spring contacts for electrical connections.

Diagrams

SKIIP25NAB065V1 pin connection
