Product Summary

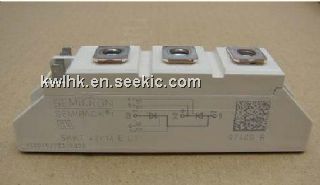

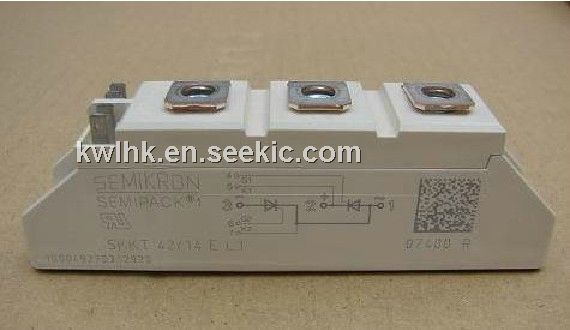

The SKKT42 is a Thyristor / Diode Module. The applications of the SKKT42B16E include DC motor control, AC motor soft starters, temperature control, professional light dimming.

Parametrics

SKKT42 absolute maximum ratings: (1)ITAV: 40 (28) A at Tc=85 (100)℃; (2)ID: 50/60 A at Ta=45℃, 85/110 A at Ta=35℃; (3)IRMS: 110/3*85 A; (4)ITSM: 1000 A at Tvj=25, 850 A at Tvj=125℃; (5)i2t: 5000 A2s at Tvj=25℃, 3600 A2s at Tvj=130℃; (6)VT: 1.95 V max at Tvj=25℃, IT=500 A; (7)VT(TO): 1 V max at Tvj=125℃; (8)rT: 4.5 mΩ max at Tvj=130℃; (9)IDD; IRD: 15 mA max at Tvj=130℃, VRD=VRRM.

Features

SKKT42 features: (1)heat transfer and isolation through aluminium oxide ceramic isolated metal baseplate; (2)hard soldered joints for high reliability; (3)UL recognized, file no. E 63 532.

Diagrams

SKKT42 pin connection
