Product Summary

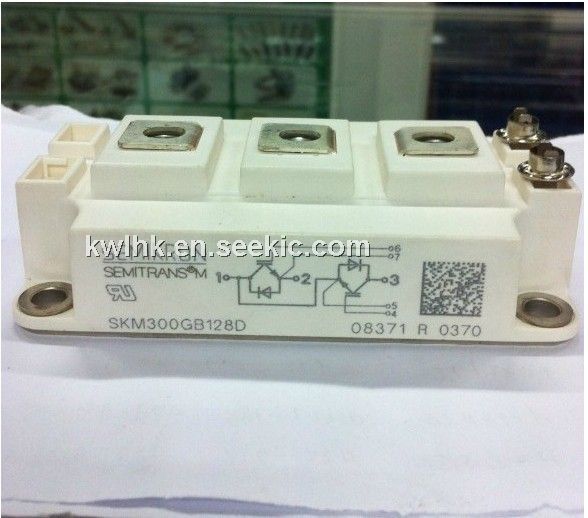

The SKM300GB126D is a trench IGBT module. The typcial applications of the device include electronic welders, AC inverter drives and UPS.

Parametrics

SKM300GB126D absolute maximum ratings: (1)IGBT, VCES: 1200V when Tj=25℃; IC: 310A when Tj=150℃, Tcase=25℃; 200A when Tj=150℃, Tcase=80℃; ICRM: 400A when ICRM=2XIcnom; VGES: ±20V; tpsc: 10μs when VCC=600V, VGE≤20V, Tj=125℃, VCES<1200V; (2)inverse diode, IF: 250A when Tj=150℃ Tcase=25℃; 170A when Tj=150℃ Tcase=80℃; IFRM: 400A when IFRM=2XIfnom; (3)module, It(RMS): 500A; Tvj: -40 to 150℃; Tstg: -40 to 125℃; Visol: 4000V when AC 1min.

Features

SKM300GB126D features: (1)trench=trechgate technology; (2)VCEsat with positive temperature coefficient; (3)high short circuit capability, self limiting to 6Ic.

Diagrams

SKM300GB126D pin connection
