Product Summary

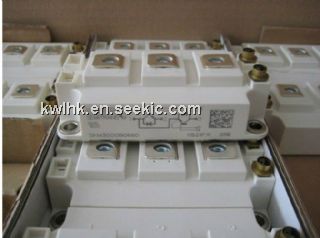

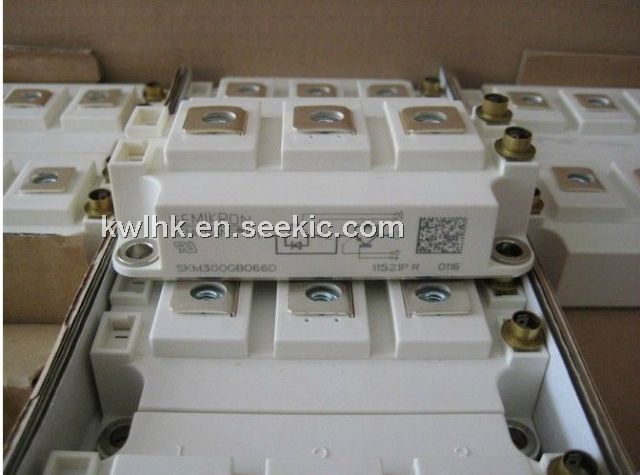

The SKM300GB12T4 is an IGBT Module. It is ideal for: (1)AC inverter drives; (2)UPS; (3)Electronic welders at fsw up to 20 khz.
Parametrics
SKM300GB12T4 absolute maximum ratings: (1)On the conditions of Tj=25℃, VCES: 1200V; (2)On the conditions of Tj=175℃, Tcase=25℃, IC: 420A; On the conditions of Tj=175℃, Tcase=80℃, IC: 325A; (3)On the conditions of ICRM=3×lcnom, ICRM: 900A; (4)VGES: ±20V; (5)conditions of VCC=600V; VGE≤15V; Tj=125℃, VCES<1200V, tpsc: 10μs; (6)It(RMS): 500A; (7)Tvj: -40 to +175℃; (8)Tstg: -40 to +125℃; (9)Visol: 4000V.
Features
SKM300GB12T4 features: (1)IGBT4=4 generation(trench)IGBT; (2)VCEsat with positive temperature coefficient; (3)High short circuit capability, self limiting to 6×ICNOM; (4)Soft switching 4 generation CAL diode(CAL4).
Diagrams
