Product Summary

The SKM100GB123D is an IGBT module. The typical application of the SKM100GB123D includes switching (not for linear use).

Parametrics

SKM400GA12V absolute maximum ratings: (1)Vces: 1200V; (2)IC: 400A; (3)ICRM: 600A; (4)VGES: ±20V; (5)tpsc: 10μs; (6)IF: 390A; (7)IFRM: 600A; (8)IFSM: 2880A.

Features

SKM400GA12V features: (1)MOS input (voltage controlled); (2)N channel, homogeneous Si; (3)low inductance case; (4)very low tail current with low temperature dependence; (5)high short circuit capability, self limiting to 6Icnom; (6)latch-up free; (7)fast&soft inverse CAL diodes; (8)isolated copper baseplate using DCB direct copper bonding technology; (9)large clearance (10mm) and creepage distances (20mm).

Diagrams

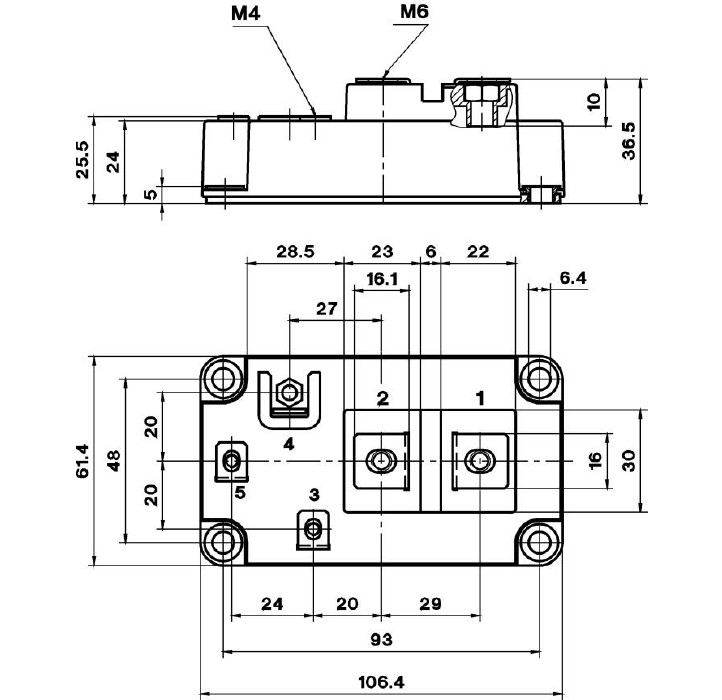

SKM400GA12V pin connection
