Product Summary

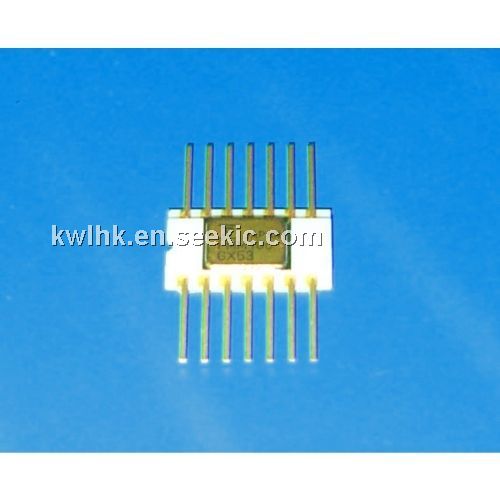

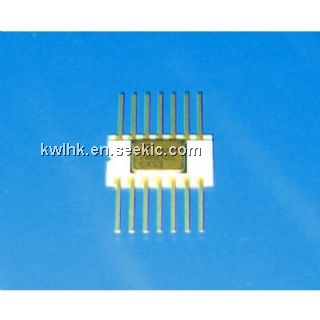

The FMM106 is a GaAs Microwave Static Frequency Divider designed for dividing an input signal by 8 over a frequency range from 2.0 to 10 GHz. This part is designed for Microwave Frequency Synthesizer and Phase-Locked Oscillator applications. Fujitsu’s stringent Quality Assurance Program assures the highest reliability and consistent performance.

Parametrics

FMM106 absolute maximum ratings: (1)Supply Voltage: -7.0V to 0V; (2)Input Voltage: VSS to 0V; (3)Input Power: +13.0dBm; (4)Storage Temperature: -55℃ to +125℃; (5)Power Dissipation: 1.0W.

Features

FMM106 features: (1)Operation to 10 GHz; (2)Input Frequency divide by 8, OUT and OUT; (3)-5V (or+5V) DC Single Power Supply; (4)External 50 ohm Load Driving Capability; (5)Small 10 pin Hermetic SMT-10 Package (VJ); (6)Tape and Reel available.

Diagrams

FMM106 block diagram
