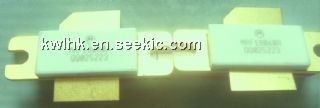

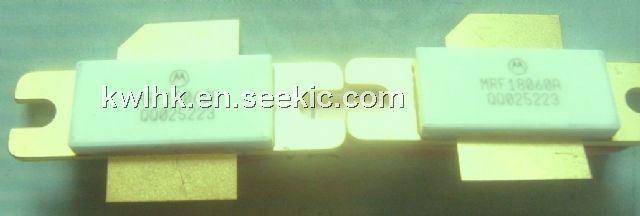

MRF18060A

MRF18060A, mosfet, 2.0 ghz, 60 watts, smd, Motorola, 65 Vdc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $15.48~18.76 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	18.76 / Piece
500 ~ 1000 :	17.13 / Piece
1000 ~ 1500 :	15.48 / Piece

PartNumber:: MRF18060A

Brand:: Motorola, Inc - MOTOROLA | D/C: 02+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-26

From Other Seller

Part Number:MRF18060A
US $15.48 - 18.76
Quantity:

piece

Product Summary

The MRF18060A is an N-Channel Enhancement–Mode Lateral MOSFET. Designed for PCN and PCS base station applications with frequencies from 1.8 to 2.0 GHz. Suitable for FM, TDMA, CDMA and multicarrier amplifier applications. To be used in Class AB for PCN–PCS/cellular radio and WLL applications.

Parametrics

MRF18060A absolute maximum ratings: (1)Drain–Source Voltage: 65 Vdc; (2)Gate–Source Voltage:–0.5 to +15 Vdc; (3)Storage Temperature Range:–65 to +150℃; (4)Operating Junction Temperature: 200 ℃.

Features

MRF18060A features: (1)Typical GSM Performance, Full Frequency Band (1805 – 1880 MHz); (2)Internally Matched, Controlled Q, for Ease of Use; (3)High Gain, High Efficiency and High Linearity; (4)Integrated ESD Protection; (5)Designed for Maximum Gain and Insertion Phase Flatness; (6)Capable of Handling 10:1 VSWR, @ 26 Vdc, 60 Watts CW Output Power; (7)Excellent Thermal Stability; (8)Available in Tape and Reel. R3 Suffix = 250 Units per 56 mm, 13 Inch Reel.
