Product Summary

The TIM3742-45SL is a microwave power GaAs FET.

Parametrics

TIM3742-45SL absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 20A; (4)Total Power Dissipation (Tc= 25 °C)PT: 115.4W; (5)Channel Temperature Tch: 175°C; (6)Storage Tstg: -65 to +175°C.

Features

TIM3742-45SL features: (1)high power: P1dB=45.5dBm at 3.7GHz to 4.2GHz; (2)broad band internally matched fet; (3)high gain: G1dB=10.0dB at 3.7GHz to 4.2GHz; (4)hermetically sealed package.

Diagrams

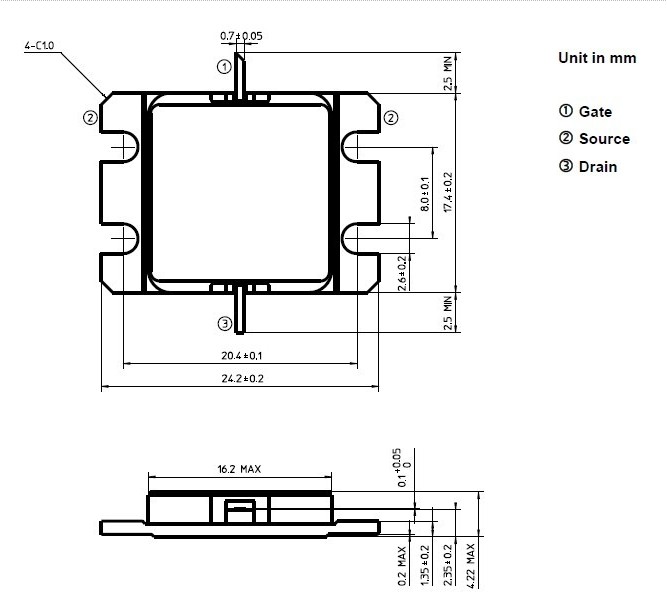

TIM3742-45SL block diagram
