Product Summary

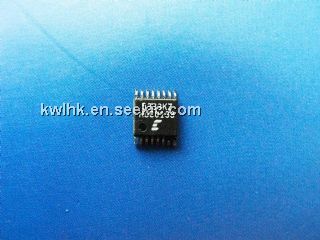

The 5333KZ is a highly integrated, 24-bit, 96 kHz audio ADC providing stereo analog-to-digital converters using delta-sigma conversion techniques. This device includes line level inputs in a 16-pin TSSOP package.

Parametrics

5333KZ absolute maximum ratings: (1)DC Power Supplies: -0.3 to 4.0V; (2)Input Current, Any Pin Except Supplies Iin: ±10 mA; (3)Digital Input Voltage VIND: -0.3 to VL+0.4 V; (4)Ambient Operating Temperature (power applied)TA: -55 to 125 °C; (5)Storage Temperature Tstg: -65 to 150 °C.

Features

5333KZ features: (1)24-bit conversion; (2)Supports 96 kHz sample rates; (3)98 dB dynamic range at 3 V supply; (4)-88 dBFS THD+N; (5)1.8 to 3.3 volt supply; (6)16-Pin TSSOP package; (7)Low power consumption– 11 mW at 1.8 V; (8)Internal high pass filter to remove DC offsets; (9)Linear phase digital anti-alias filter.

Diagrams

5333KZ block diagram
