Product Summary

The A42MX24-PQ208 is an FPGA. It offer a cost-effective design solution at 5V. The A42MX24-PQ208 is a single-chip solution and provides high performance while shortening the system design and development cycle. The device can integrate and consolidate logic implemented in multiple PALs, CPLDs, and FPGAs. Example applications of the A42MX24-PQ208 include high-speed controllers and address decoding, peripheral bus interfaces, DSP, and co- processor functions.

Parametrics

A42MX24-PQ208 absolute maximum ratings: (1)VCC, DC Supply Voltage: –0.5 to +7.0 V; (2)VI, Input Voltage: –0.5 to VCC+0.5 V; (3)VO, Output Voltage: –0.5 to VCC+0.5 V; (4)tSTG, Storage Temperature: –65 to +150℃.

Features

A42MX24-PQ208 features: (1)Commercial, Industrial, Automotive, and Military Temperature Plastic Packages; (2)Commercial, Military Temperature, and MIL-STD-883 Ceramic Packages; (3)QML Certification; (4)Ceramic Devices Available to DSCC SMD.

Diagrams

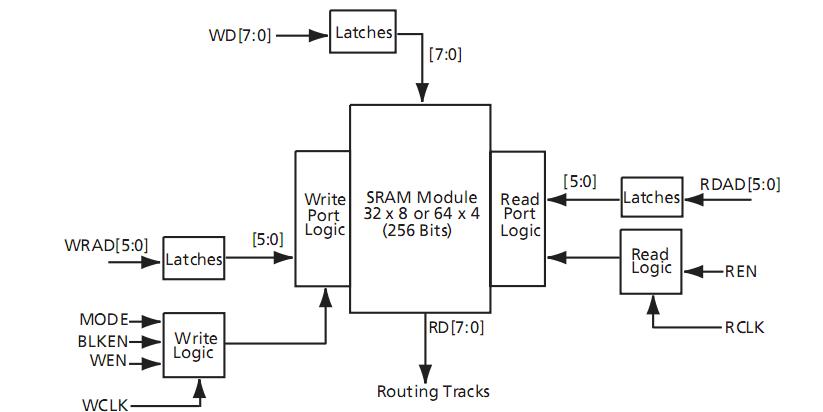

A42MX24-PQ208 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

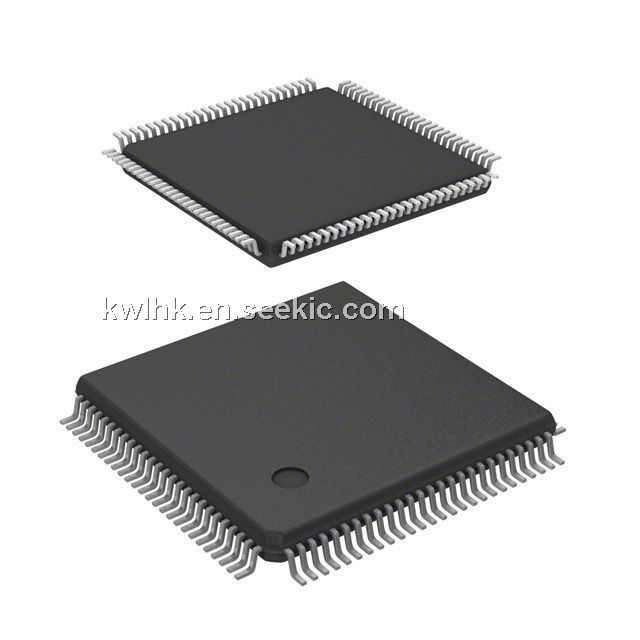

A42MX24-PQ208
A42MX24-PQ208


IC FPGA MX SGL CHIP 36K 208-PQFP

Data Sheet

0-24: $93.88
A42MX24-PQ208A
A42MX24-PQ208A


IC FPGA MX SGL CHIP 36K 208-PQFP

Data Sheet

0-10008: $121.22
A42MX24-PQ208I
A42MX24-PQ208I


IC FPGA MX SGL CHIP 36K 208-PQFP

Data Sheet

0-24: $110.99
A42MX24-PQ208M
A42MX24-PQ208M


IC FPGA MX SGL CHIP 36K 208-PQFP

Data Sheet

0-24: $334.90
